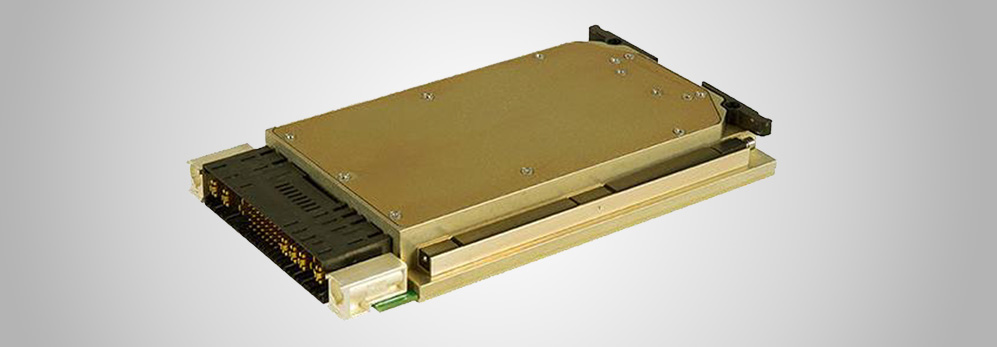

M4162 Series

Product M4162 Series Product M4162 Series

Contact:

John Tucci
Product Manager
(607) 376-2778
jtucci@amphenol-aao.com

Description:

Normal Operation: During Normal Operation, the M4162 works as an Input follower. Small Voltage drop, of less than 1V is expected.

Hold Up Operation: When Voltage at the input of the unit, drops below 18V, the Holdup will discharge it’s internal capacitance into the DC Bus. During this time the M4162 output voltage will rise to 85V and will decrease as the capacitor bank energy will be discharging.

Recharging of the capacitor bank will start before Input voltage goes back to steady state line.

The M4162 holdup charging time is less than 0.5Sec per Mil-STD-704, during charging time input current would be 10A-20A depends on input voltage.  Reducing Charging current and increasing charge time is optional.

Features & Benefits:

  • VITA 62 COMPLIANT
  • 3U FORM FACTOR
  • WIDE INPUT RANGE
  • IPMI / 46.11 COMMUNICATION
  • UP to 48J
M4162 Series Data sheet
M4162 Series Data sheet
