Electric Mobility Solutions

Amphenol offers industry-leading interconnect systems optimal for battery powered, electric powertrain vehicles for manufacturers pivoting toward EV infrastructure and electric mobility vehicles. The electrification of air systems and automobiles is not an idealistic technology of the future anymore; it’s here now.


Electric Mobility

Amphenol offers industry-leading interconnect systems optimal for battery powered, electric powertrain vehicles for manufacturers pivoting toward EV infrastructure and electric mobility vehicles. The electrification of air systems and automobiles is not an idealistic technology of the future anymore; it’s here now.

Next gen combat

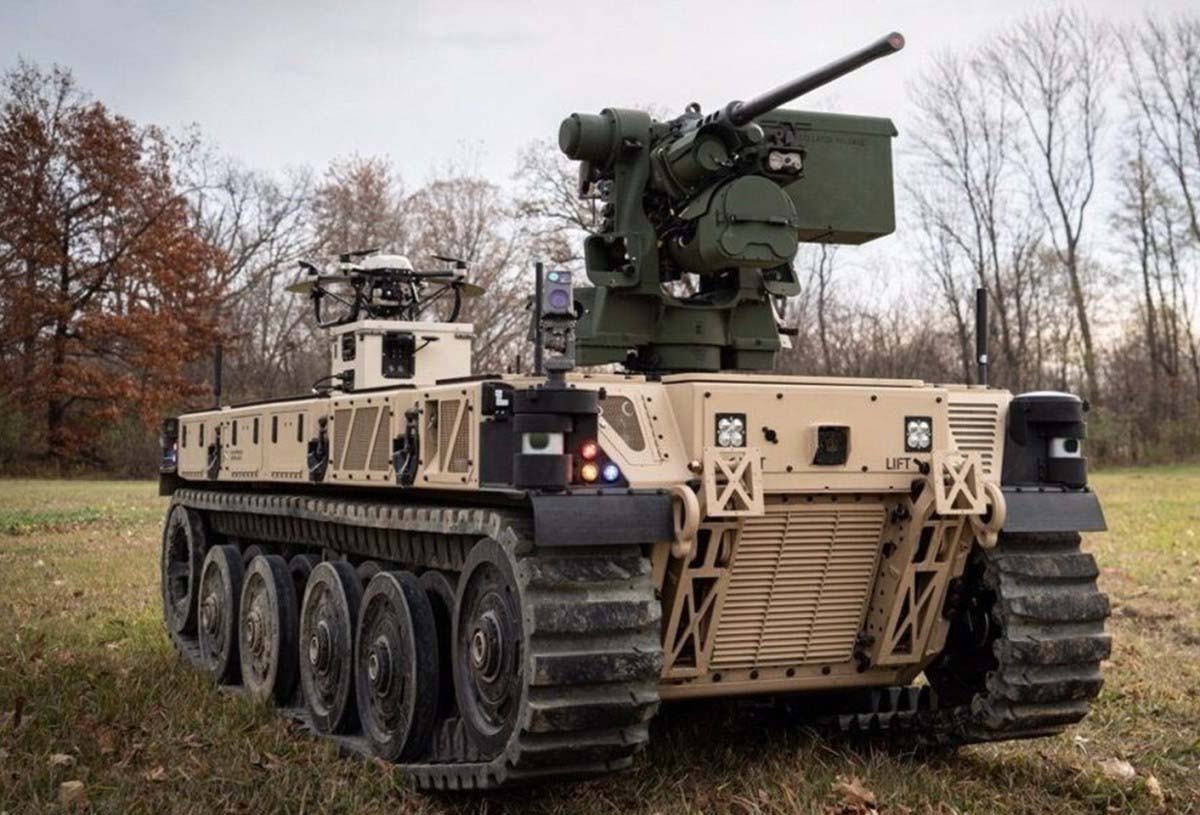

Next-Generation Ground Combat Vehicles

Whether it’s ground combat vehicles within the Next Generation Combat Vehicle (NGCV) family such as the Optionally Manned Fighting Vehicle (OMFV), air vehicles such as electric vertical take-off and landing (eVTOL) systems, or the hybrid electric Joint Light Tactical Vehicle (eJLTV), the internal combustion engine continues to be phased out in favor of electric propulsion.



Electric aircraft technology is promising. But ground EVs are expected to make the biggest inroads in the near future, particularly military electric vehicles. Various militaries around the world have begun to invest in new electric and hybrid ground combat vehicle fleets, including pushing to retrofit existing internal combustion vehicles into hybrids.



And it’s not just powertrains that are changing; military ground combat vehicle cabins continue to be outfitted with further capabilities. The addition of onboard computer systems, advanced sensors, and more is transforming standard tactical vehicles into mobile command centers.



The technology is moving fast. Amphenol offers reliable, high-powered connectors for manufacturers seeking electric mobility solutions as this crucial innovation in transportation technology continues to evolve.



EV Mobility Solutions require a Fast Charger

One of the central problems facing the mainstream adoption of EVs is the time it takes to charge them.



Current battery technology typically requires several hours to charge a standard multi-passenger electric vehicle without at least 40kw of power. This requirement is even higher for electric air systems and more energy-intensive ground combat vehicles. This means high voltage charging systems are essential for the development of fast charging technology.



Amphenol offers several high amp and high voltage connectors capable of megawatt charging applications such as the Voltarius high voltage 38999 interconnect, rated at 1,000 volts per direct current at sea level.



Electric Vehicle Safety

The immense power required to operate and charge electric vehicles requires safety considerations. One of the ways Amphenol connectors emphasize safety is by utilizing deeper pins that interlock deeper with the receptacle. This means electric currents must travel a greater distance before they can cause a corona discharge, an important safety feature for high-power applications such as eVTOL aircraft.

EV mobility

Air Mobility

Electric air vehicles are the next major innovation in air mobility, and eVTOL aircraft are leading the way. Utilizing features such as vectored thrust, tandem wings and advanced multicopter designs, these revolutionary aircraft have unique electrical assemblies and power requirements perfectly tailored for Amphenol’s suite of interconnect systems.

We are at the onset of the electrification of everything, and a lot of power and voltage is required to achieve it. Engineered to accommodate high currents and amperes, Amphenol Aerospace power solutions play a pivotal role in enabling the electrification of vehicles, infrastructure, and beyond.

Electric Mobility Solutions

High Power Connectors

Amphenol high power connectors lead the way with modern high-powered electric-driven technology in a world that’s trending toward more electric power. As the world pivots toward the electrification of everything, global industries require connectors that can reliably and safely facilitate high currents and high voltages to power today's and tomorrow’s cutting-edge technologies such as electric military ground combat vehicles and electric vertical take-off and landing (eVTOL) aircraft.

Product High Voltage 38999
High Voltage 38999
An expansion of the MIL-DTL-38999 series to provide solutions for next-generation power requirements.
Product Voltarius
Voltarius
Voltarius is a high-power interconnect system optimized for high voltage applications, with performance up to 1000Vdc and 450A along with essential safety features.
Product High Power 38999
High Power 38999
MIL-DTL-38999 Series III connector with RADSOK®, Temper-Grip, or standard high power contacts to accommodate requirements for 500+ amps.
Product High Power 5015
High Power 5015
Features proven RADSOK® technology along with the high current, high temperature Temper-Grip to provide a solution for any operating temperature.
Product Ram-Lock with High Power Contacts
Ram-Lock with High Power Contacts
Amphenol’s Single Pole Ram-Lock connector is a ruggedized push-pull connector designed for applications up to 500 °F (260 °C)
Product Matrix 38999
Matrix 38999
A hybrid of the High Power Matrix 5015 series and D38999 military connector, Amphenol's High Power Matrix 38999 connector uses mil-spec qualified inserts from the Matrix 5015 and combines them with the mechanical interface of the D38999 to bring you the best of both worlds.
Product MIL-DTL-5015 (Matrix)
MIL-DTL-5015 (Matrix)
This crimp, rear-release high-power series provides an improved alternative to the older MIL-C-5015 solder type.
Product MGT-5015 Reverse Bayonet Coupling
MGT-5015 Reverse Bayonet Coupling
An expansion of the GT-5015 series, offering a rugged environment connector in new finishes such as Durmalon and Black Zinc Nickel for military applications.
Product Class L Connectors
Class L Connectors
Amphenol Class L 22992 high-power, heavy duty electrical connectors are designed for high-current electrical loads and are the largest cylindrical Amphenol power connectors available. Class L heavy duty connectors are ruggedized and designed for high power military and industrial applications that need maximum reliability.
Product Commercial Class L
Commercial Class L
Amphenol Commercial Class L heavy duty power connectors are the commercial equivalent of the MIL-DTL-22992 qualified connectors.
Product QWLD Connectors
QWLD Connectors
QWLD Series heavy duty electrical connectors provide reliable power and control functions in hostile environments where ordinary connectors cannot survive.
Product QWL Connectors
QWL Connectors
Designed for demanding use, Amphenol QWL cylindrical power connectors are compact and ruggedized for a variety of land and sea functions.

High Voltage Connectors

The High Voltage 38999 Series was developed as a solution for all-electric power requirements on commercial aircraft and urban air mobility vehicles, or eVTOLs. They are rated for up to 1200 VAC / 1500 VDC* to remain partial discharge free at 50,000 ft. Standard D38999 Series III shells are used and Dualok plugs are available for increased shock and vibration performance.

Product High Voltage 38999
High Voltage 38999
An expansion of the MIL-DTL-38999 series to provide solutions for next-generation power requirements.
Product HVDC
HVDC
HVDC is a low mating force, high mating cycle connector that achieves enhanced performance due to multiple points of contact vs. standard 2 or 4 tine contacts.
Product Ram-Lock with High Power Contacts
Ram-Lock with High Power Contacts
Amphenol’s Single Pole Ram-Lock connector is a ruggedized push-pull connector designed for applications up to 500 °F (260 °C)

High Power Contacts

Amphenol Aerospace's development of High Power Contacts is the foundation of our new High Power Products. The High Power Contacts allow for greater current carrying capacity, or amperage, and are able to withstand higher temperatures in the same sizes as current Mil-Spec style pin and socket contacts.Our Temper Grip Contacts which utilize a stainless steel napkin ring to prevent the beryllium copper tines from “relaxing” at higher temperatures and maintaining a greater area of true contact in all situations to decrease resistance, are rated for 220 amps and 200°C+ for Size 0 contacts. Our RADSOK Socket Contacts utilize a stamped and formed flat grid, uniquely twisted into a hyperbolic geometry to provide robust, high-density contact, are rated 250°C for Size 0 contacts.

Product Temper-Grip
Temper-Grip
Temper-Grip socket contact series is a high-current technology designed for use in high temperature applications, and available with most Amphenol connectors.
Product RADSOK®
RADSOK®
RADSOK® technology is based upon a stamped and formed flat grid, uniquely twisted into a hyperbolic geometry to provide robust, high-density contact to the mating pin contact.
Product HCP (High Current Pin) Contacts
HCP (High Current Pin) Contacts
Push the current carrying capability past the limits of a Mil-Spec contact, or simply improve the efficiency of your system while reducing the heat dissipated into your platform.
Product 38999 Connectors with Power Contacts
38999 Connectors with Power Contacts
Amphenol has increased its power options for D38999, and a contact system for every application. Featuring Temper-Grip, RADSOK®, HCP and Standard Power contacts.
