Matrix MIL-DTL-5015 High Power Connector

Product MIL-DTL-5015 (Matrix) Product MIL-DTL-5015 (Matrix)

Contact:

David Salt
Product Manager
+1 (607) 563-5161
dsalt@amphenol-aao.com

Description:

The Matrix MIL-DTL-5015 is a crimp, rear-release high power connector that provides an improved alternative to the older MIL-C-5015 solder type. It bridges the gap between an old connector standard and the need for environmental and high-performance standards in current technologies.

This high-power option with RADSOK® contacts provides up to 40 percent increased current carrying capability.

Features & Benefits:

  • Medium to heavy weight environmental cylindrical
  • Multiple interlock systems ensure permanent insert retention Completely sealed against environmental extremes
  • Seven mounting styles, in shell sizes 8 to 40
  • Proprietary quick disconnect plug, with or without lanyard available
  • Classes include aluminum or stainless steel shells, or firewall capability
  • Accommodation of contact sizes 0 to 16
  • Over 100 insert arrangement patterns available, accommodating from a minimum of 1 to a maximum of 85 circuits including high power RADSOK socket contacts
Connector Options - Reference Guide

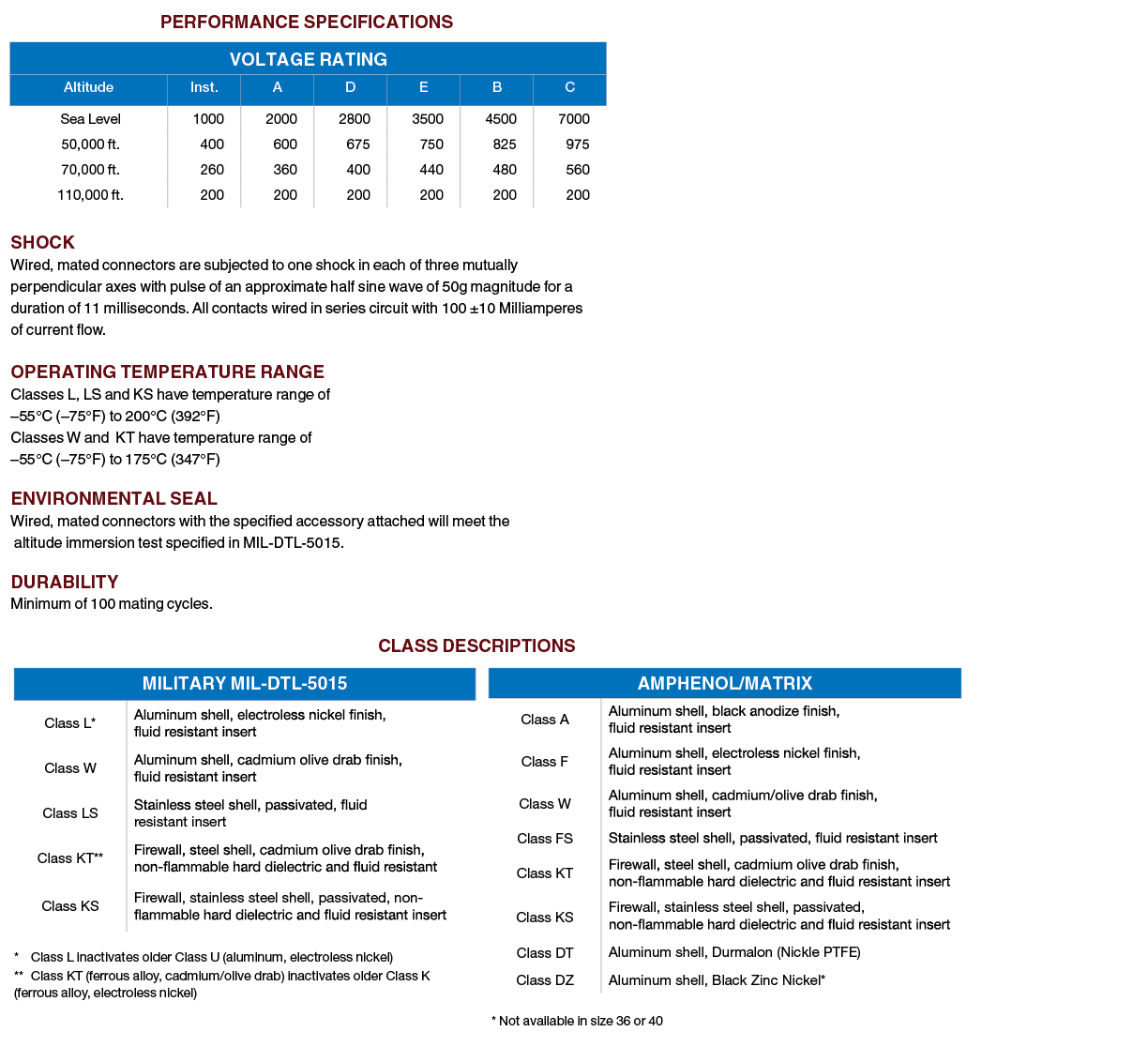

Performance Specifications

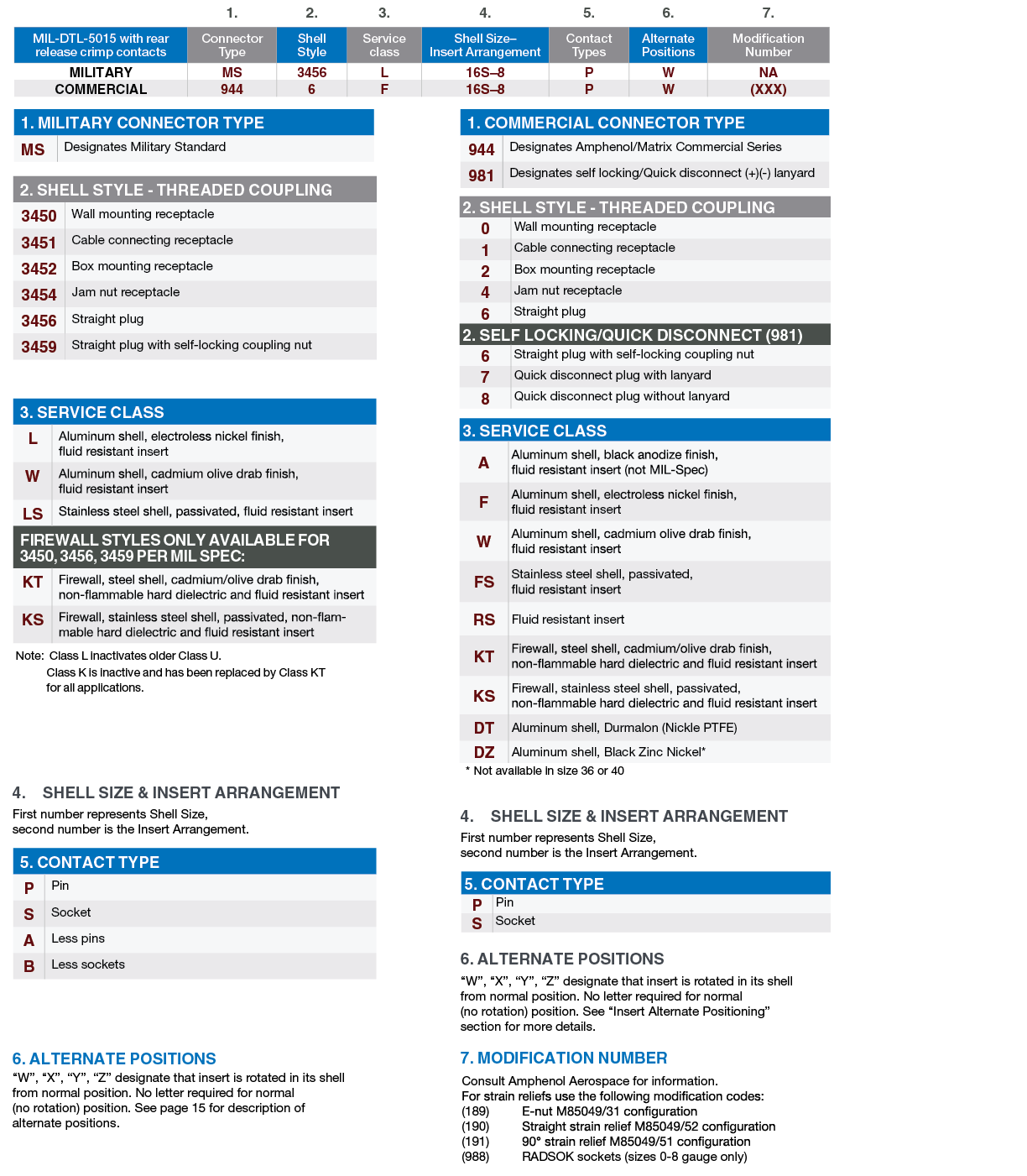

How to Order Guide

Dimensions

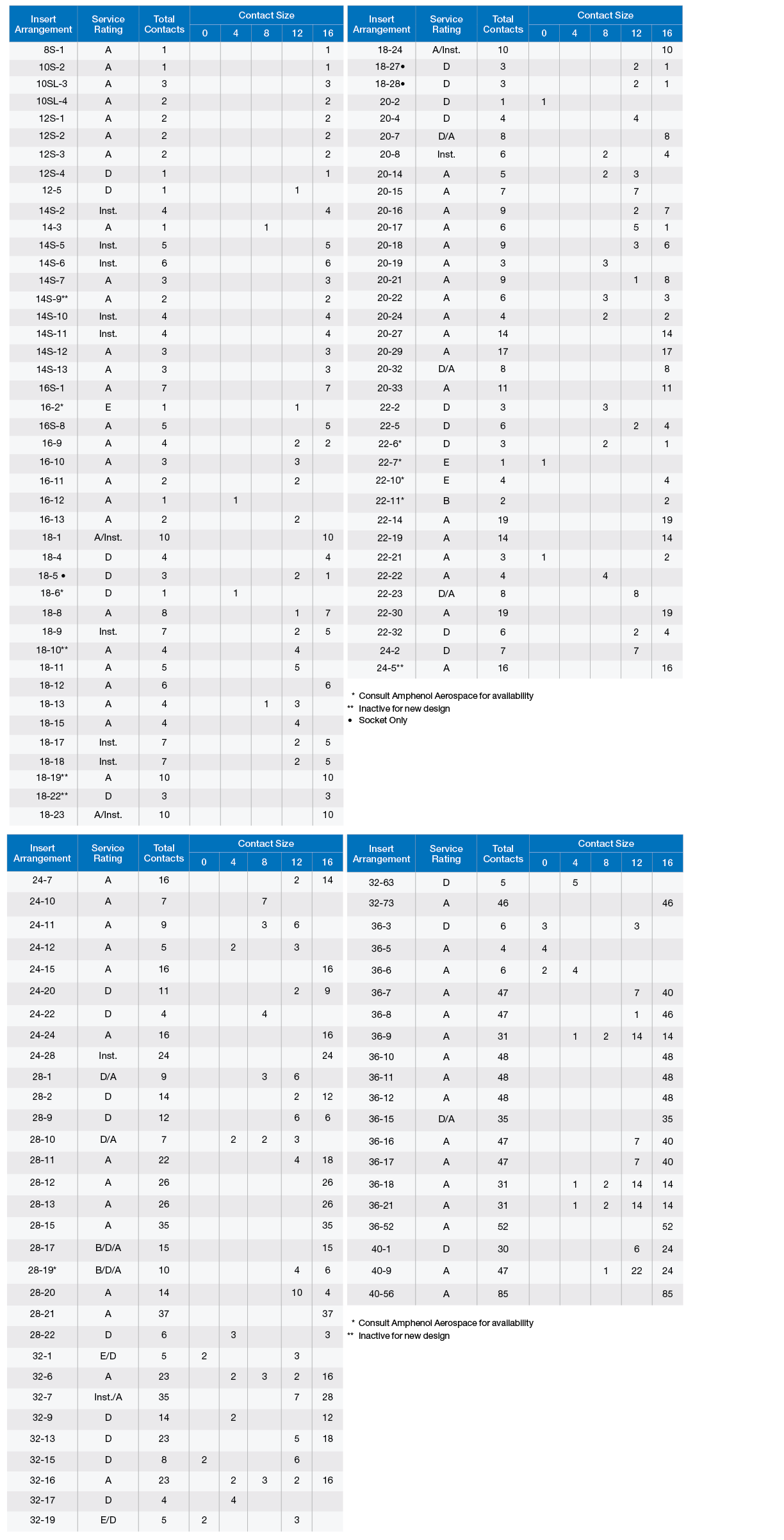

Insert Chart

Insert Arrangements

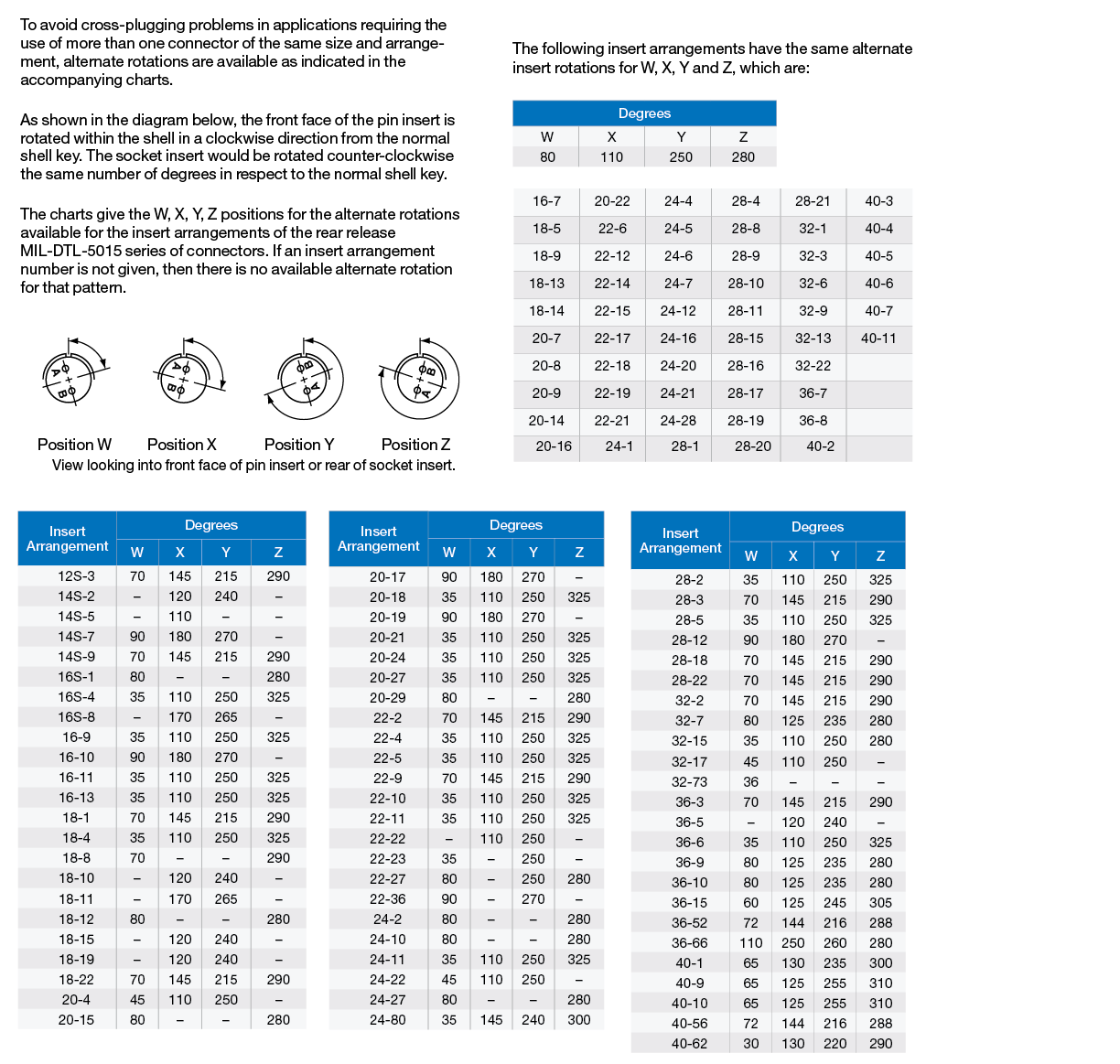

Insert Alternate Rotations

RADSOK Contact Information

Contact Information

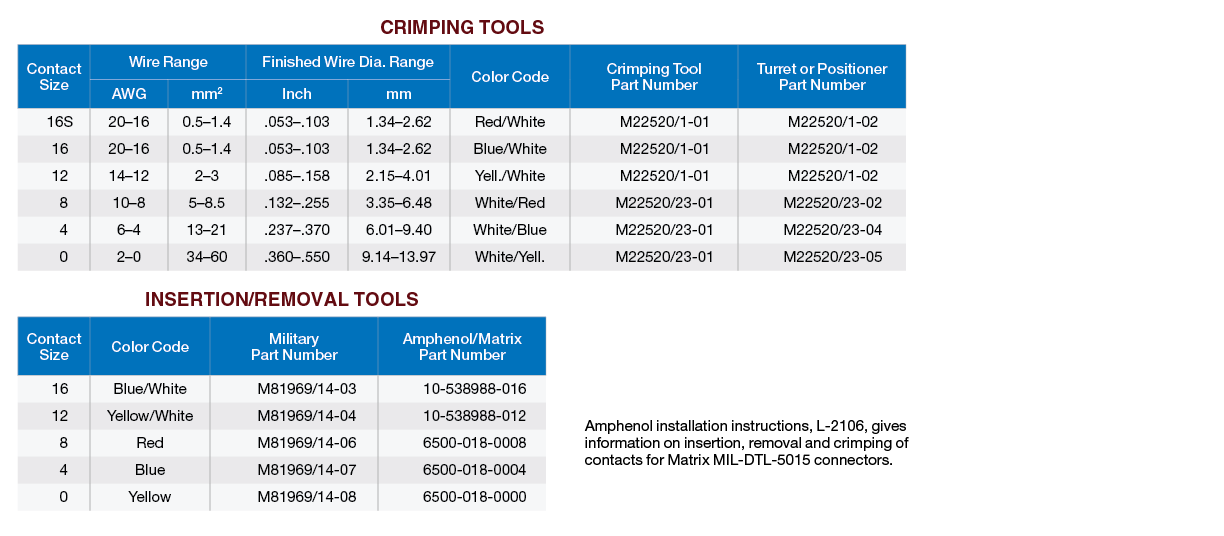

Assembly Tools

Accessories


MIL-DTL-5015, Matrix Catalog
This series provides an improved alternative to the older MIL-C-5015 solder type. It bridges the gap between an old connector standard and the environmental and high-performance needs of current technologies.
P3D - 3D Printed Inserts and Rapid Prototyping
Utilizing groundbreaking in-house capability and industry-leading partners, Amphenol can design and manufacture a custom insert assembly in days, not weeks.
