38999 Bulkhead Feedthroughs

Product 38999 Bulkhead Feedthroughs Product 38999 Bulkhead Feedthroughs

Contact:

Joe Ryder
Product Manager
+1 (607) 563-5001
jryder@amphenol-aao.com

Description:

Amphenol Aerospace's Bulkhead Feedthrough connectors are double-ended receptacles with feedthrough contacts that mate to standard Mil-Spec D38999 plugs.  Available in multiple shell and contact styles, they are designed to meet applicable requirements for 38999 Series III and allow for long-term ease of assembly and serviceability as well as reducing bill of materials.

Features & Benefits:

  • Corrosion Resistance:
    Several shell finishes capable of withstanding 500 hours of salt spray
  • Environmentally Sealed:
    Environmentally sealed when mated with Mil-Spec plug
  • Gender Availability :
    Available in a variety of gender options tailored to your application needs
  • Contact Protection:
    Recessed pins in this 100% scoop-proof connector minimize potential contact damage
  • Versatile:
    Mates to standard D38999 plug connectors and accessories
  • Temperature:
    Performs in ranges from -65C to 200C
  • Also Available: thermocouple, filtering, high speed, hermetic, and custom.  Contact Amphenol for more information
  • Contact Amphenol for Series I and II availability
How to Order Guide

Dimensions

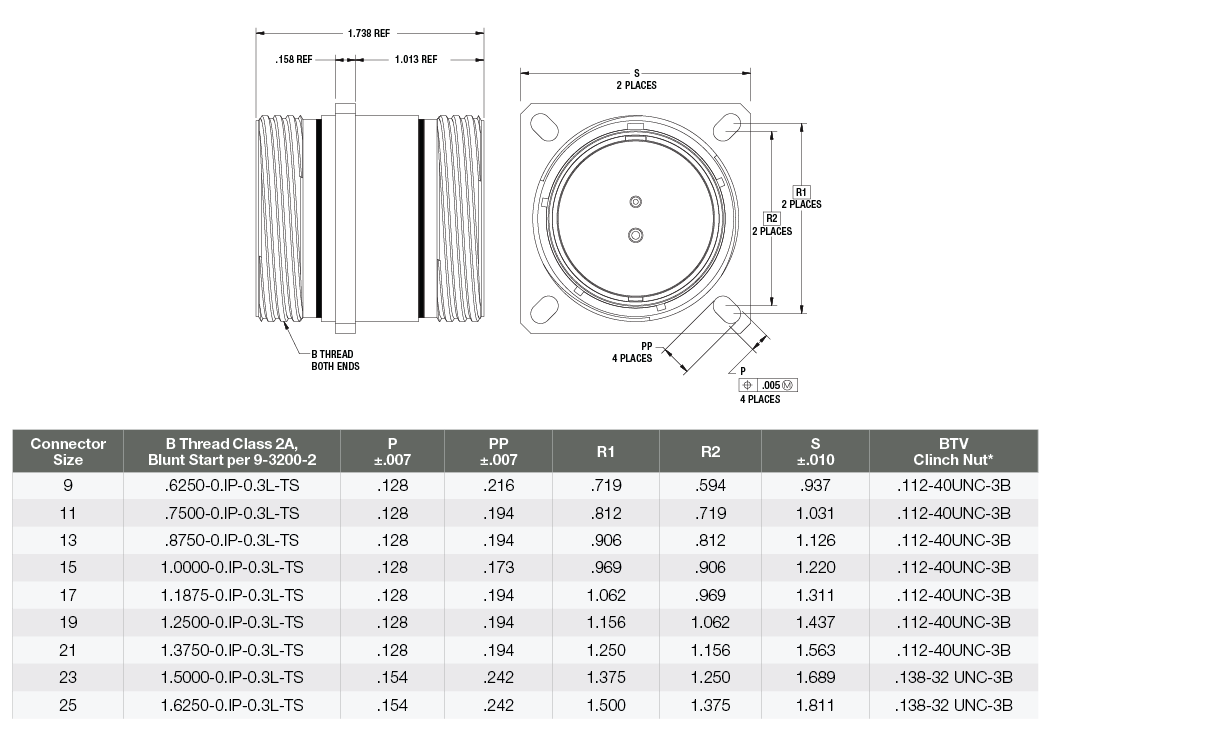

BTV00 - Wall Mount
BTV10 - Wall Mount with Clinch Nuts (Not Pictured)

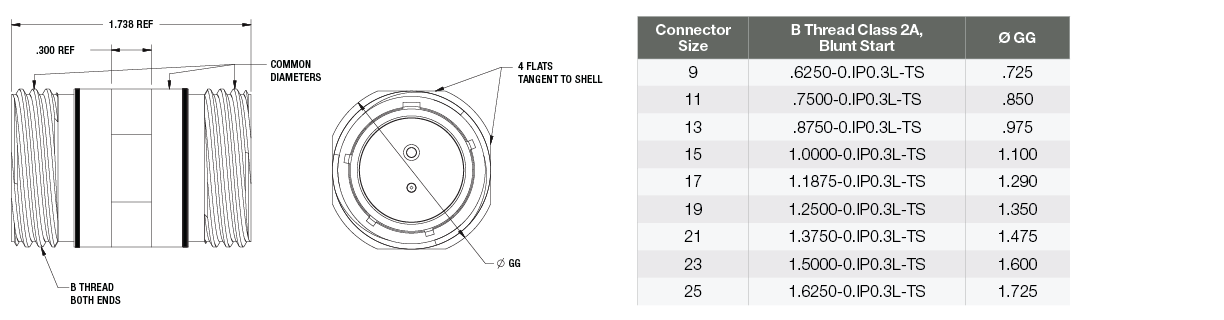

BTV01 - In-Line

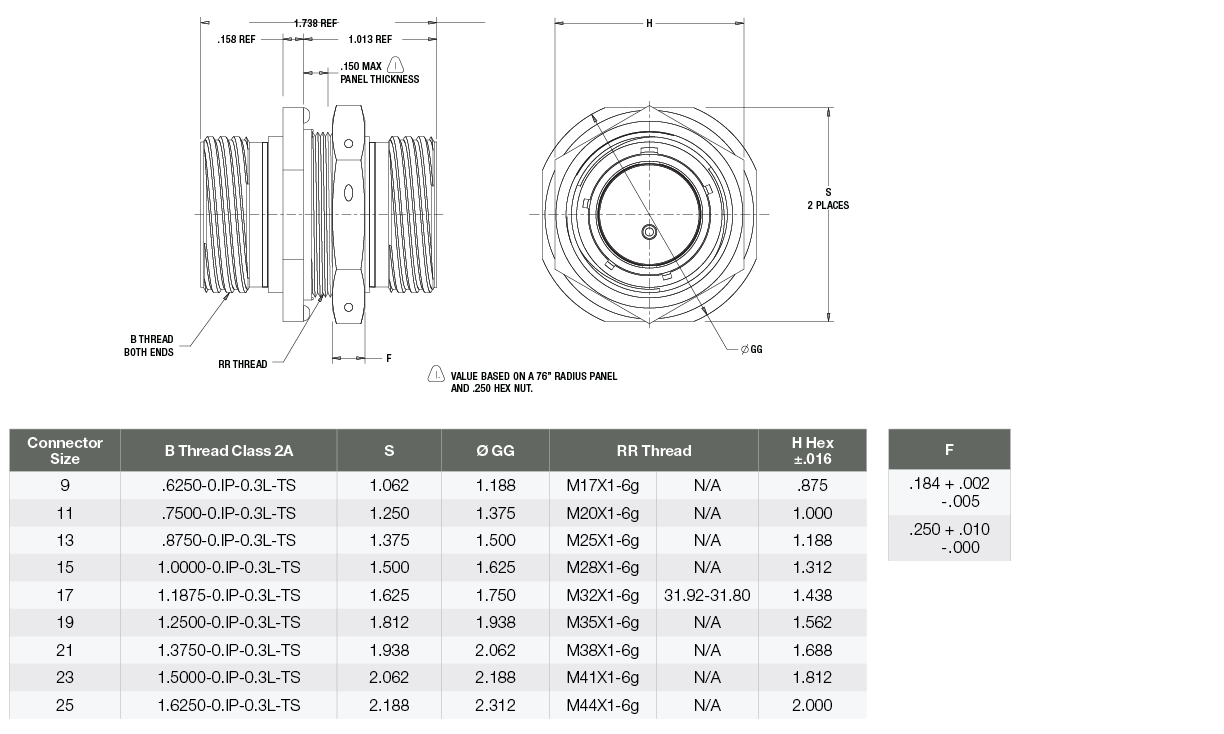

BTV01 - Jam Nut

Bulkhead Feed-throughs Data Sheet
Bulkhead Feed-Through Connectors remove the need for discrete wire termination when assembling the connector.
