Description:

Amphenol® Tri-Start MIL-DTL-38999 Series III Connectors offer the highest performance capabilities for both general duty and severe environment applications. Meeting or exceeding MIL-DTL-38999 Series III requirements, Amphenol's Tri-Start connector is available in aluminum, stainless steel or composite with several finish options.

Consult Amphenol Aerospace about BACC63, EN3645, and other industry specification order information.

Features & Benefits:

  • Aluminum, Stainless Steel, and Composite shells
  • EMI Shielding: solid metal-to-metal coupling, grounding fingers provide superior EMI shielding
  • 100% scoop-proof connector minimize potential contact damage - Improved interfacial seal design
  • Stainless steel or cadmium over nickel plating withstand a 500 hour salt spray exposure
  • Operates under severe high temperature vibration, through 200°C
  • Firewall Capability
  • Unique, self-locking, quick coupling connector eliminates lockwiring
  • Stainless Steel qualified to BACC63DB and BACC63DC specifications

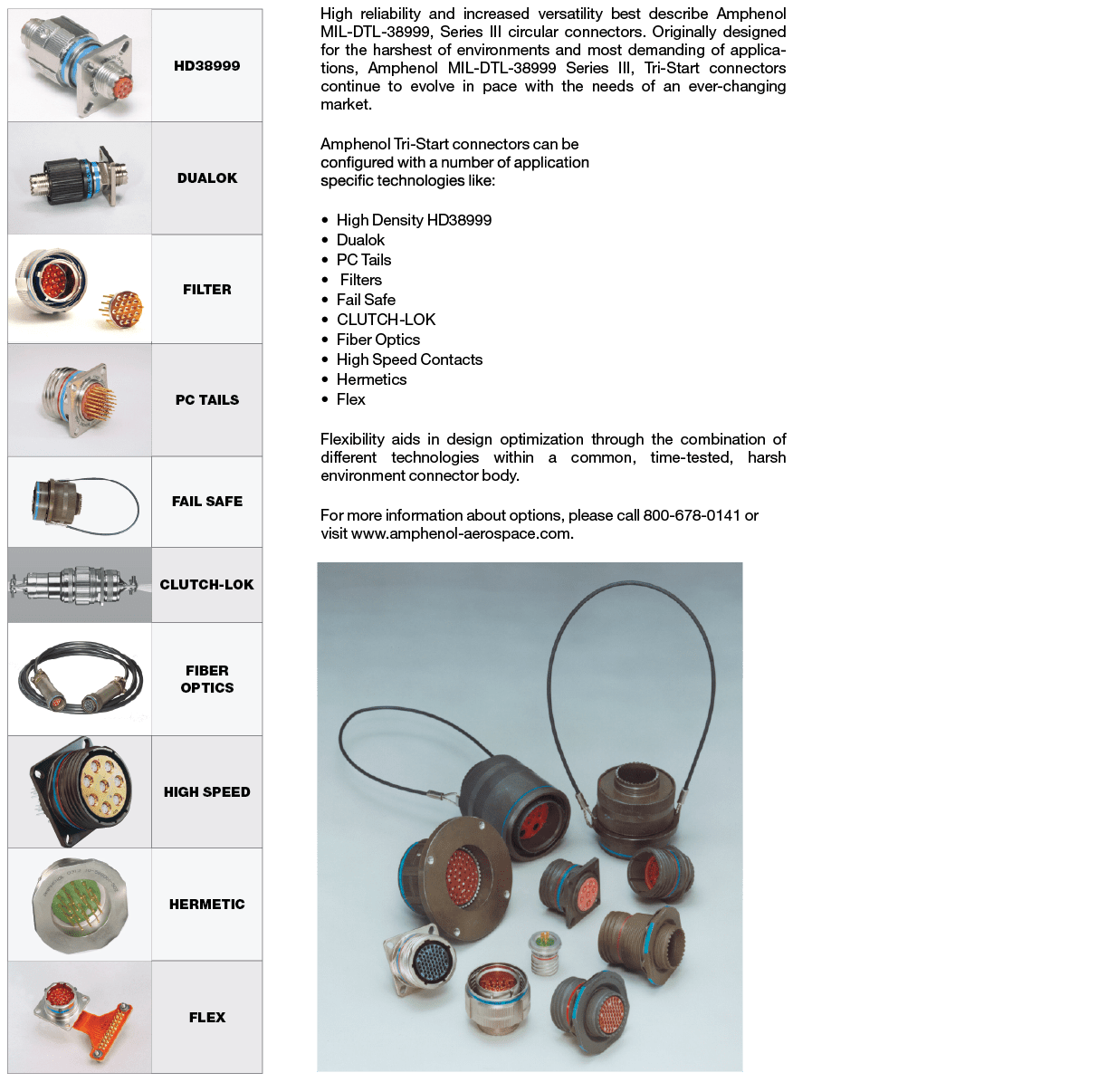

Connector Options

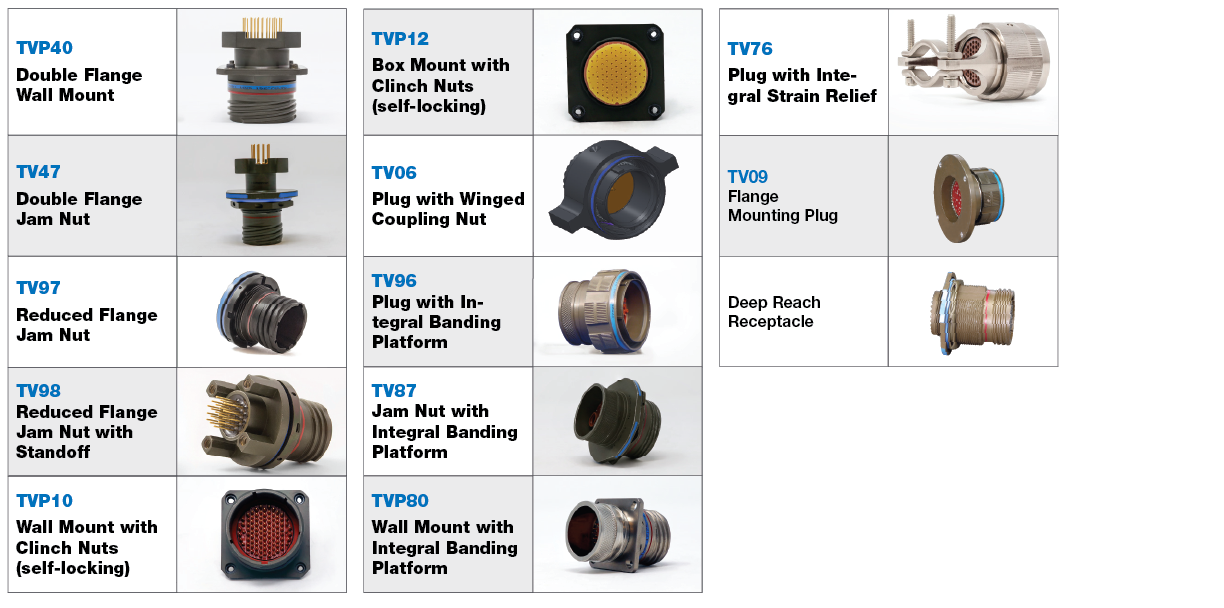

Custom Designs

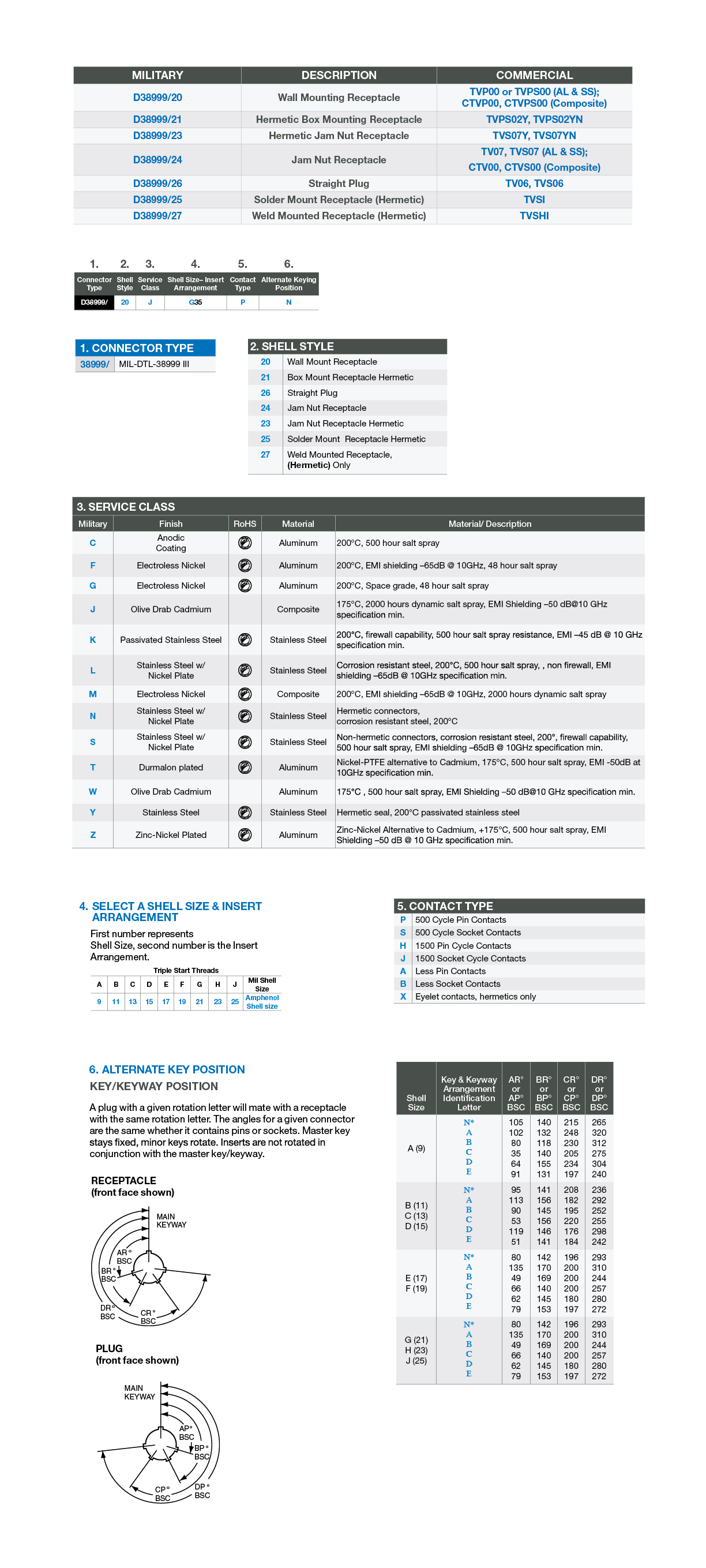

How to Order - Military

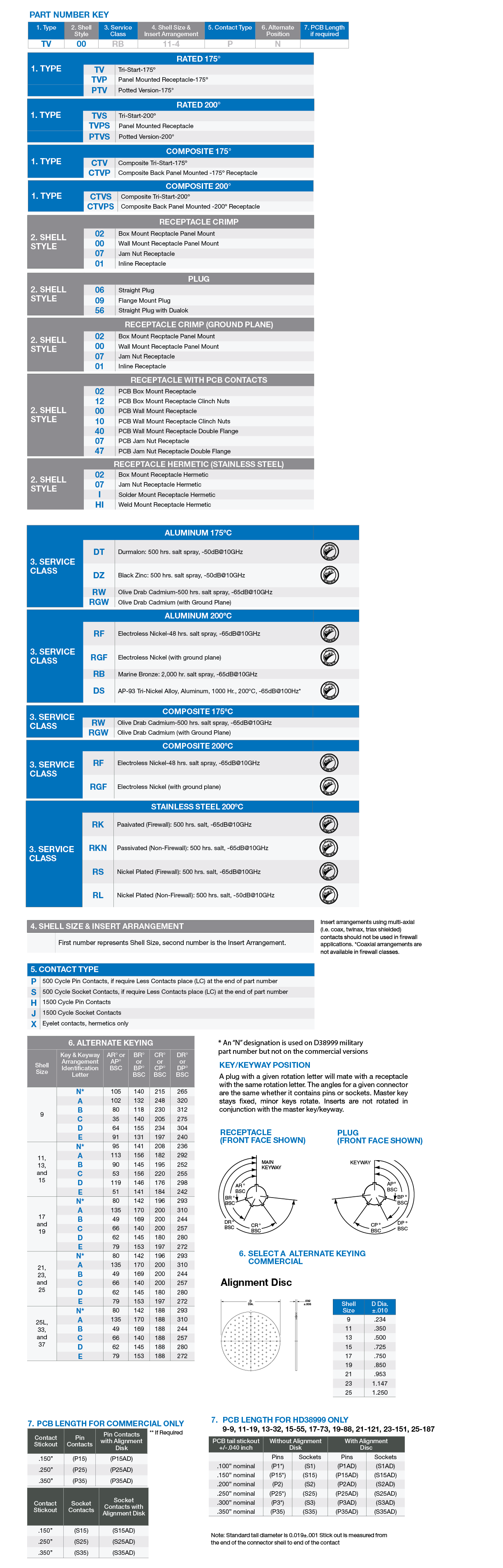

How to Order - Commercial

Dimensions


Insert Chart

PCB Layouts


*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.



*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

*All dimensions for reference only. For availability of other arrangements, consult Amphenol Aerospace.

Insert Arrangements

Contact Information

Alternate Keying Information

Test Data

Amphenol® Tri-Start connectors provide EMI/EMP shielding capability which exceeds MIL-DTL-38999 Series III requirements.

The TV and CTV Series III connector with standard solid metal-to-metal coupling, EMI grounding fin­gers and conductive finishes have proven to be the ultimate in EMI/EMP shielding effectiveness. The charts illustrate shielding effectiveness data which is typical of Tri-Start connectors tested with the nickel finish (Class F-metal, Class M-composite) over a wide frequency range.

The vibration capability of the Tri-Start Series is shown in the chart below. This illustrates the most severe vibration envelope of any qualified connec­tor available today.

These capabilities along with a +200°C, -65°C temperature rating and superior moisture sealing protection pro­vide the user with a connector that can withstand the most rigorous application.



Tri-Start, Series III Typical Shielding Effectiveness Test Data
EMI/EMP Shielding Effectiveness dB Testing

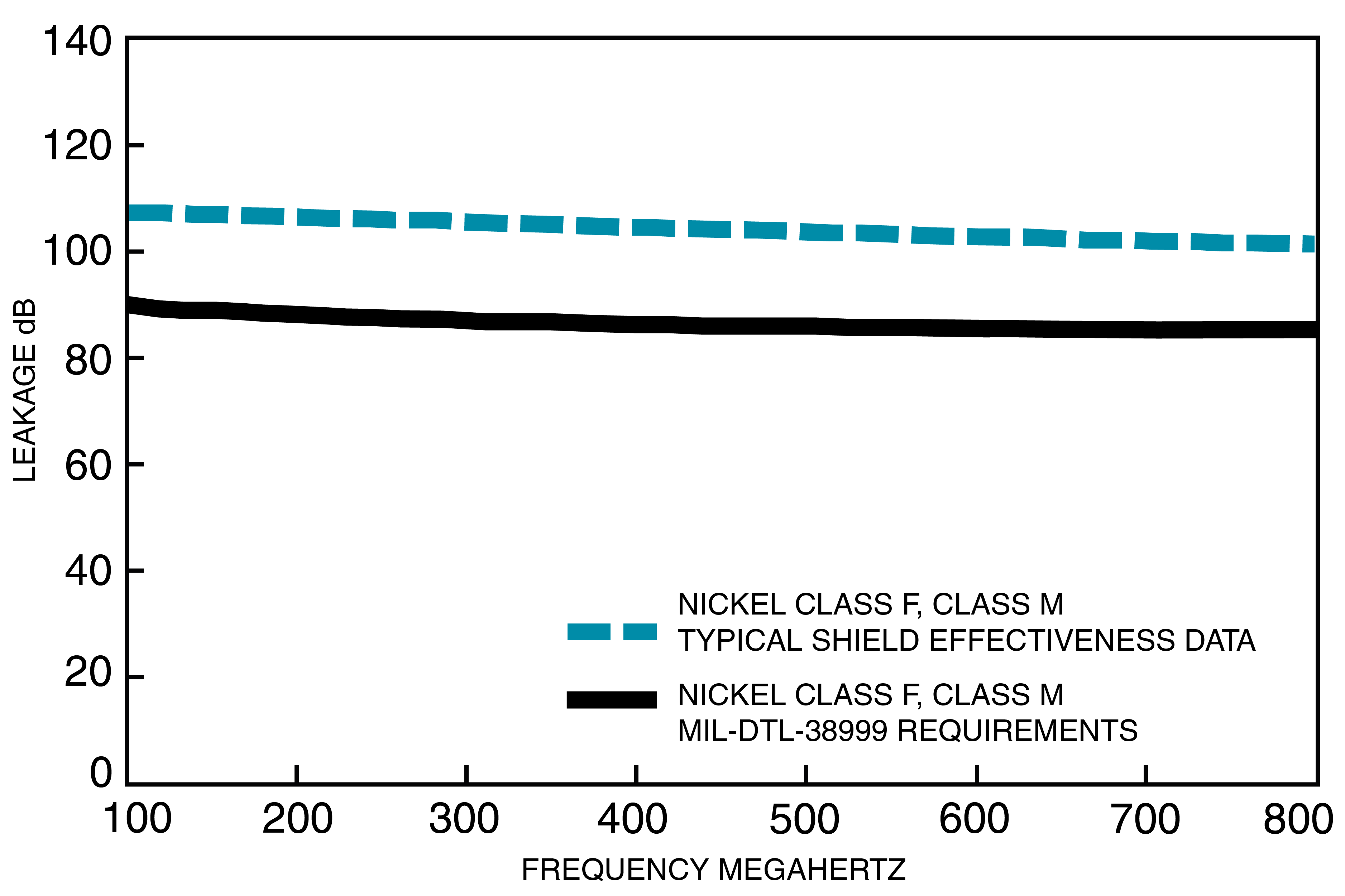

Triaxial Method

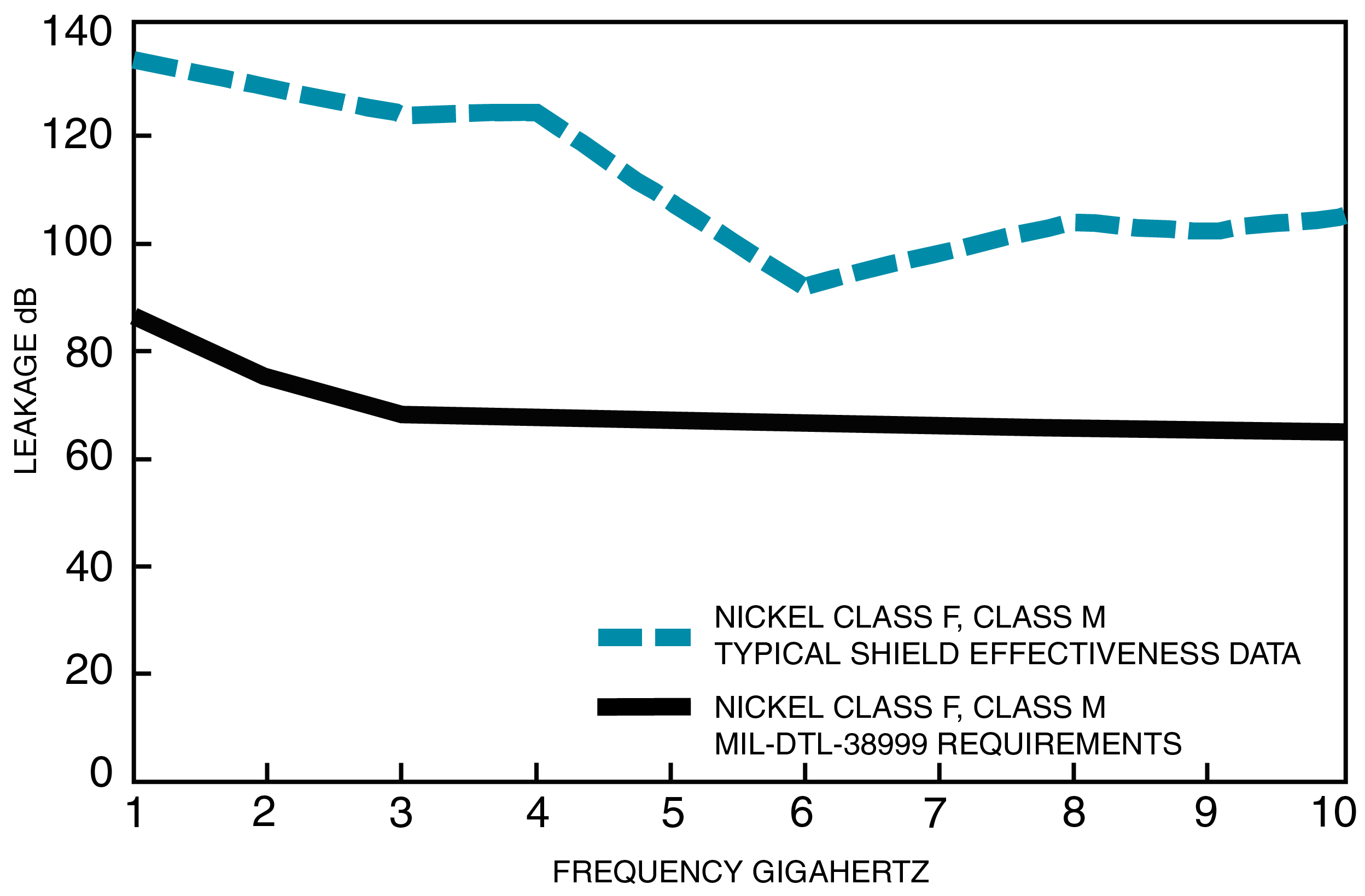

Stirring Method



Test data beyond 2GHz is subject to equipment variation.

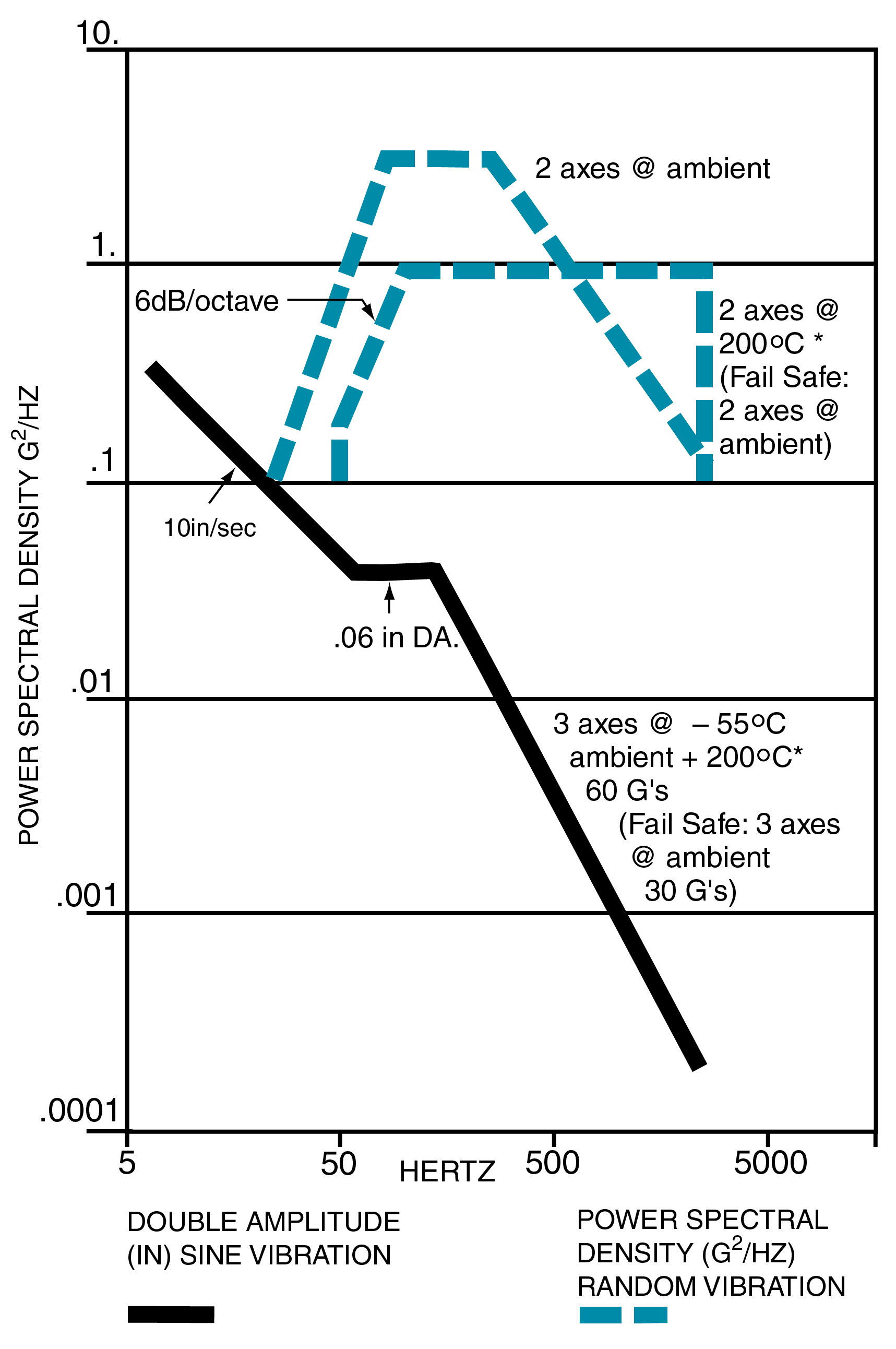

Tri-Start Vibration Criteria

* Dependant on shell finish

NOTE: For test data information on the new Clutch-Lok Tri-Start, high vibration connectors, consult Amphenol Aerospace.

Weight Comparisons (Composite vs. Metal)

Depending on the shell style, shell size and contact count, weight savings can range from 17% to 40% compared to standard aluminum product.

Tri-Start Weight in Ounces (includes contacts)

  Wall Mount Receptacle (00) + Military D38999/20 Jam Nut Receptacle (07) + Military D38999/24 Plug (06) + Military D38999/26
Stainless Steel Aluminum Composite Stainless Steel Aluminum Composite Stainless Steel Aluminum Composite
Pin Socket Pin Socket Pin Socket Pin Socket Pin Socket Pin Socket Pin Socket Pin Socket Pin Socket
9-35 0.7216 0.784 0.3248 0.3777 0.2588 0.3121 1.1472 1.2096 0.4416 0.504 0.3489 0.4413 1.0736 1.136 0.4236 0.4625 0.2606 0.2994
9-98 0.7216 0.7776 0.2496 0.3056 0.1664 0.2224 1.1472 1.2032 0.4416 0.4976 0.3744 0.464 1.0736 1.1296 0.3968 0.4624 0.2991 0.2337
11-35 0.9488 1.08 0.3632 0.496 0.2753 0.4081 1.4304 1.5632 0.5936 0.7264 0.4679 0.6007 1.248 1.3808 0.5312 0.6389 0.345 0.4582
11-98 0.9488 1.062 0.3632 0.4768 0.2753 0.3889 1.4304 1.544 0.5936 0.7072 0.4679 0.5815 1.248 1.3616 0.533 0.6283 0.3468 0.4457
13-8 1.2096 1.3888 0.48 0.6592 0.3696 0.5488 1.9104 2.0896 0.7664 0.9456 0.656 0.8352 1.8048 1.984 0.7936 0.9728 0.5237 0.5952
13-35 1.216 1.432 0.4864 0.7024 0.3762 0.5922 1.9168 2.1328 0.7728 0.9888 0.6136 0.8296 1.8112 2.0272 0.8 0.8472 0.5301 0.6531
13-98 1.216 1.4016 0.4864 0.672 0.3762 0.5618 1.9168 2.1024 0.7728 0.9584 0.6136 0.7992 1.8112 1.9968 0.7978 0.9856 0.5244 0.7157
15-5 1.5312 1.7904 0.6352 0.8944 0.5027 0.7619 2.3792 2.6384 0.9728 1.232 0.7749 1.0341 2.2704 2.5456 0.9632 1.1719 0.645 0.8467
15-18 1.5456 1.8416 0.776 0.9456 0.6432 0.8128 2.3936 2.6896 0.9872 1.2832 0.8544 1.1504 2.2848 2.5808 0.9776 1.2736 0.6594 0.8208
15-35 1.5424 1.8768 0.6464 0.9808 0.5139 0.8483 2.3904 2.7344 0.984 1.328 0.7861 1.1301 2.2816 2.6256 1.2179 1.3184 0.8961 1.0002
17-6 2.1488 2.5904 0.936 1.3776 0.7812 1.2228 2.9152 3.3568 1.2336 1.6752 0.994 1.4356 2.5008 3.1024 1.1408 1.7424 0.816 1.4176
17-26 2.1344 2.56 0.9216 1.3472 0.7668 1.1924 2.9008 3.3264 1.2192 1.6448 0.9796 1.4052 2.4864 2.912 1.1264 1.3343 0.8017 0.8062
17-35 2.136 2.664 0.9232 1.4512 0.7684 1.2964 2.9024 3.4304 1.2208 1.7488 0.9812 1.5092 2.488 3.016 1.128 1.5497 0.8033 1.2144
19-11 2.2592 2.6656 0.9696 1.4528 0.7925 1.2757 3.4352 3.9184 1.472 1.9552 1.2033 1.6865 2.9808 3.464 1.3472 1.8304 0.9632 1.4464
19-32 2.1888 2.7264 0.976 1.5136 0.7989 1.3365 3.4416 3.9792 1.4784 2.016 1.2097 1.7473 2.9872 3.5248 1.3536 1.8912 0.9696 1.5072
19-35 2.192 2.8432 0.9792 1.6304 0.8021 1.4533 3.4448 4.096 1.4816 2.1328 1.2129 1.8641 2.9904 3.6416 1.3568 2.008 0.9728 1.624
21-11 2.7456 3.464 1.3088 2.0272 1.1088 1.8272 3.9712 4.6896 1.8128 2.5312 1.6128 2.3312 3.4448 4.1632 1.7344 2.5312 1.3039 1.871
21-16 2.6784 3.3168 1.2416 1.88 1.0422 1.6806 3.904 4.5424 1.7456 2.384 1.4505 2.0889 3.3776 4.016 1.6672 2.3168 1.2352 1.8736
21-35 2.6672 3.4992 1.2304 2.0624 1.031 1.863 3.8928 4.7248 1.7344 2.5664 1.4393 2.2713 3.3664 4.1984 1.656 2.2309 1.2255 1.8003
21-41 2.6768 3.36 1.24 1.9232 1.0406 1.7238 3.9024 4.5856 1.744 2.4272 1.4489 2.1321 3.376 3.5792 1.6656 1.8688 1.2336 1.4368
23-21 3.0352 3.8624 1.4496 2.2768 1.2279 2.0551 4.2368 5.064 1.944 2.7712 1.6368 2.464 3.792 4.6192 1.9216 2.7488 1.4637 2.2896
23-35 3.024 4.0448 1.4384 2.4592 1.2167 2.2375 4.2256 5.2464 1.9328 2.9536 1.6256 2.6464 3.7808 4.8016 1.9104 2.6087 1.4525 2.1507
23-53 2.8992 3.9072 1.456 2.4816 1.2343 2.2599 4.2432 5.1088 1.9504 2.816 1.6432 2.5088 3.7984 4.664 1.928 2.7936 1.4672 2.2384
25-4 3.4512 4.48 1.7312 2.8816 1.4864 2.1904 4.8048 5.8272 2.2016 3.248 1.9568 2.872 4.2224 5.2496 2.2128 3.256 1.7133 2.4163
25-19 3.5312 4.7264 1.8112 3.0064 1.5664 2.7616 4.8848 6.0816 2.2816 3.4784 2.0368 3.2336 4.3024 5.4992 2.2928 3.4896 1.7933 2.7058
25-20 3.819 4.715 2.0173 3.1125 1.7733 2.8512 5.143 6.038 2.4877 3.5421 2.1872 3.2416 4.435 5.33 2.258 3.0182 1.8288 2.8928
25-35 3.4416 4.6656 1.7216 2.9456 1.4776 2.7016 4.7952 6.0192 2.192 3.416 1.8915 3.1155 4.2128 5.4368 2.2032 3.4272 1.7037 2.9277
25-61 3.4304 4.4848 1.7282 2.7648 1.4841 2.5208 4.784 5.8384 2.1808 3.2352 1.8803 2.9347 4.2016 5.256 2.192 3.2464 1.6912 2.7456
