Reduced Flange Jam Nut Receptacles
Description:
The MIL-DTL-38999 Series III style connector features a reduced flange design that saves space, weight, and reduces your footprint when used in PCB applications.
More connectors are able to be fit on a box or board due to the reduced flange having a smaller diameter than a standard jam nut receptacle. The use of a spanner nut can make assembly easier than standard jam nut connectors by using a typical spanner wrench. Even with the reduced footprint, an o-ring remains present to allow for proper panel-to-connector sealing.
Features & Benefits:
- Provides space savings inside the box or on the panel
- Provides direct and indirect weight savings
- 30% lighter than standard 38999/24 (w/o stand-offs)
- Derived from MIL-DTL-38999 Series III Jam Nut
- Available in standard & stand-off varieties
- Mates with standard MIL-DTL-38999 Series III plugs & caps
- Available in crimp or PC tail
- Available in aluminum or stainless steel shells with all standard Amphenol plating options
Footprint Reduction
| Shell Size | Footprint Reduction | ∅ B Max | ∅ GG Max | ∅ C Max |
| 9 | 42% | .443 | .915 | .744 |
| 11 | 46% | .567 | 1.042 | .862 |
| 13 | 37% | .680 | 1.240 | 1.020 |
| 15 | 36% | .811 | 1.357 | 1.141 |
| 17 | 21% | .936 | 1.630 | 1.385 |
| 19 | 21% | 1.042 | 1.816 | 1.531 |
| 21 | 21% | 1.167 | 1.942 | 1.656 |
| 23 | 21% | 1.292 | 2.067 | 1.782 |
| 25 | 22% | 1.417 | 2.190 | 1.910 |

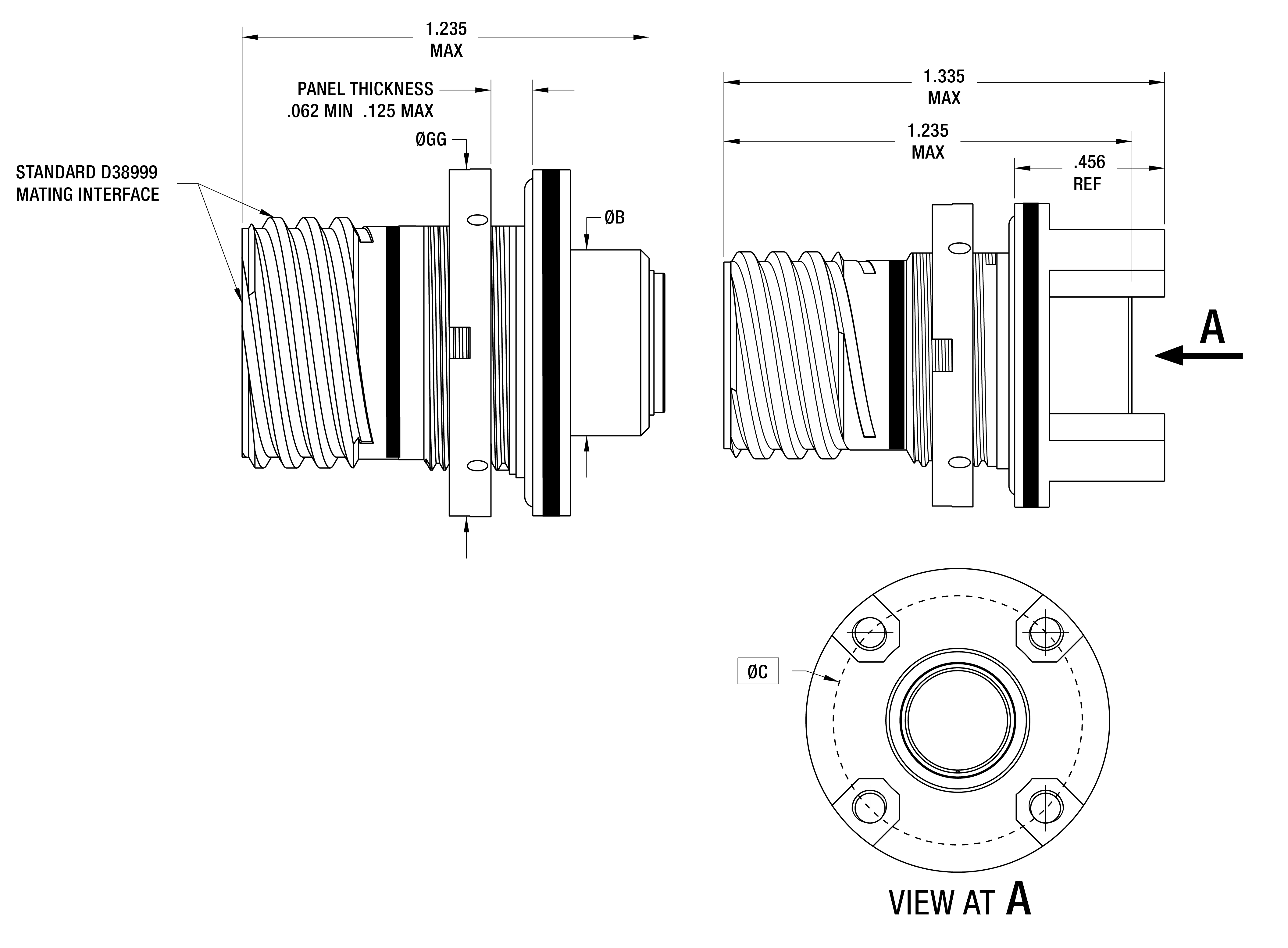

Dimensions
Backshells and Caps
Backshells provide strain relief, environmental protection, and EMI/RFI shielding at the termination area of virtually any connector.
