Pyle 26500
Contact:
Description:
Amphenol/Pyle 26500 Connectors are medium-sized connectors with a rugged design, lightweight construction and continuously dependable performance serving such diverse fields as avionics, missile systems, aircraft general-purpose applications, aircraft engines and firewalls.
Features & Benefits:
- Aluminum Connectors: General purpose, environmentally resistant, threaded or bayonet coupling. Both non-conductive and conductive finishes.
- Stainless Steel Connectors: Superior strength and wear characteristics. Threaded or bayonet coupling in same shells styles as aluminum versions.
- Firewall Connectors: Meets fireproof requirements of MIL-DTL-5015, Class K. Designed for superior strength and temperatures up to 460 °F (237.7 °C)
- 48 Series Receptacle Short Skirt: Special application connector, low profile design for restricted installation requirements
- Wire Splice Connector: Space-saving, single-contact, wire-splice module
- Hermetic Connectors
Design Features and Options
Aluminum Connectors - Military Classes R and G; Proprietary (ZZY, ZZW)
- General purpose, environmentally resistant
- Threaded or bayonet coupling
- Square flange or single hole receptacles, and straight plug shell styles
- Black anodize non-conductive finish for class R and a conductive finish in class G that provides a minimum resistance path through the shell for grounding purposes
- Coupling nuts are hard coat treated for added protection against wear
- Rear accessory threads accommodate standard MS27291 series cable supports or related accessory hardware
Stainless Steel Connectors - Military Class E; Proprietary (ZZY, ZZW)
- Machined from 300-series stainless steel providing superior strength and wear characteristics
- Threaded or bayonet coupling
- Shells experience a less than 10% loss in yield strength at elevated temperatures, 204°C (399°F)
- Shell hardware resists corrosion for the life of the connector without the need of additional finishes
- Same shell styles offered as in aluminum
- Variety of stainless steel accessories are available
Firewall Connectors – Military Class K; Proprietary (FPK, FYL)
- Meets the fireproof requirements of MIL-DTL-5015, Class K
- Threaded or bayonet coupling
- FPL - threaded coupling; same as FPK; used on Lockheed Aircraft
- FP5K - threaded coupling; same as FPK; qualified for General Electric
- Non-magnetic stainless steel shells designed for superior strength and elevated temperatures up to 460°F for extended periods
- Same shell styles as stainless steel and aluminum versions
48 Series Receptacle Short Skirt - Amphenol special application connector
- Low profile design for restricted installation requirements
- Wire Splice Connector
- Space-saving, single contact, wire splice module
Hermetic Connectors - Military Class H; Proprietary (ZZL, ZZB)
- See page 421 of 38999 Catalog for a brief description
- See page 421 of 38999 Catalog for hermetic insert availability
- Consult Amphenol Aerospace for availability and ordering information.
Contacts and Accessories for MIL-DTL-26500 connectors
- SAE AS39029 qualified contacts and special application contacts including thermocouple, printed circuit board and shielded/coaxial types
- Boeing specification contacts
- Aluminum and stainless steel cable supports; aluminum dummy receptacles
- Contact crimping/ installation/removal tools for Amphenol 48 series and Pyle-National MIL-DTL-26500 series
Commercial Design with PC Tail Contacts
- Single piece insert construction
- PC Tail Contacts
- Special shell geometries
- For high volume cost-sensitive applications

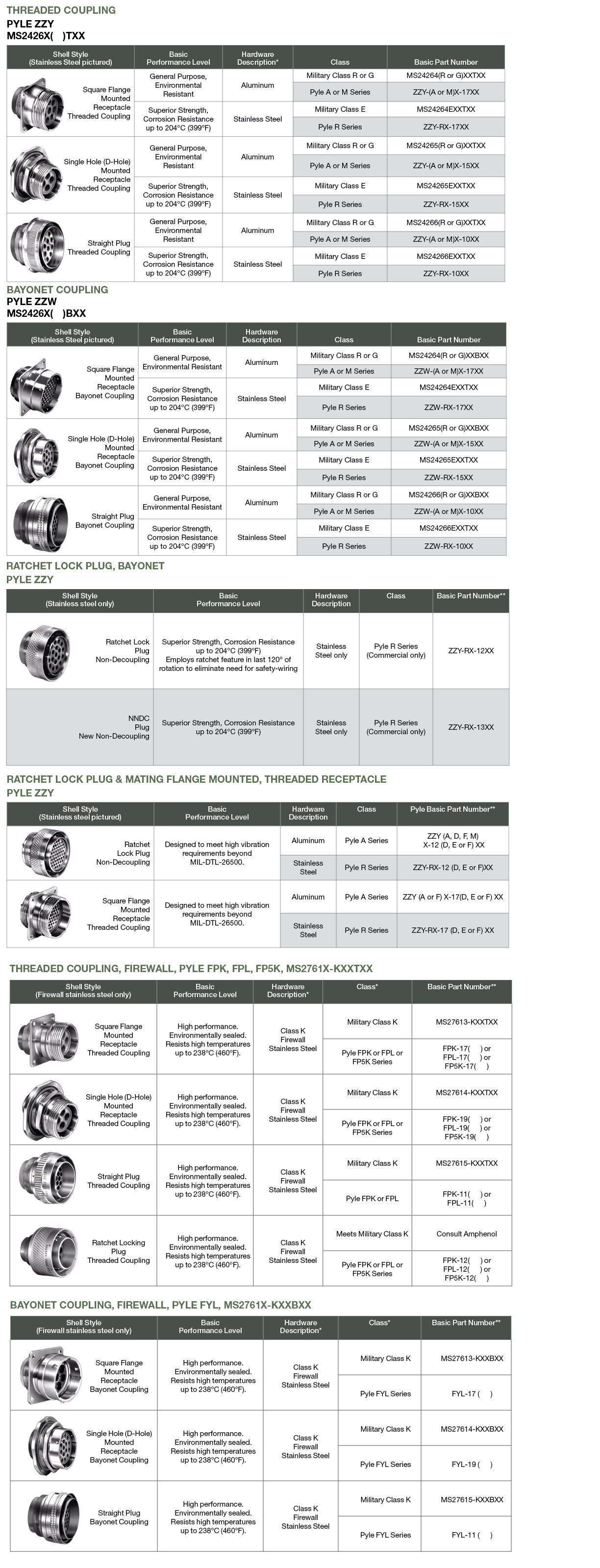

Quick Reference Guides

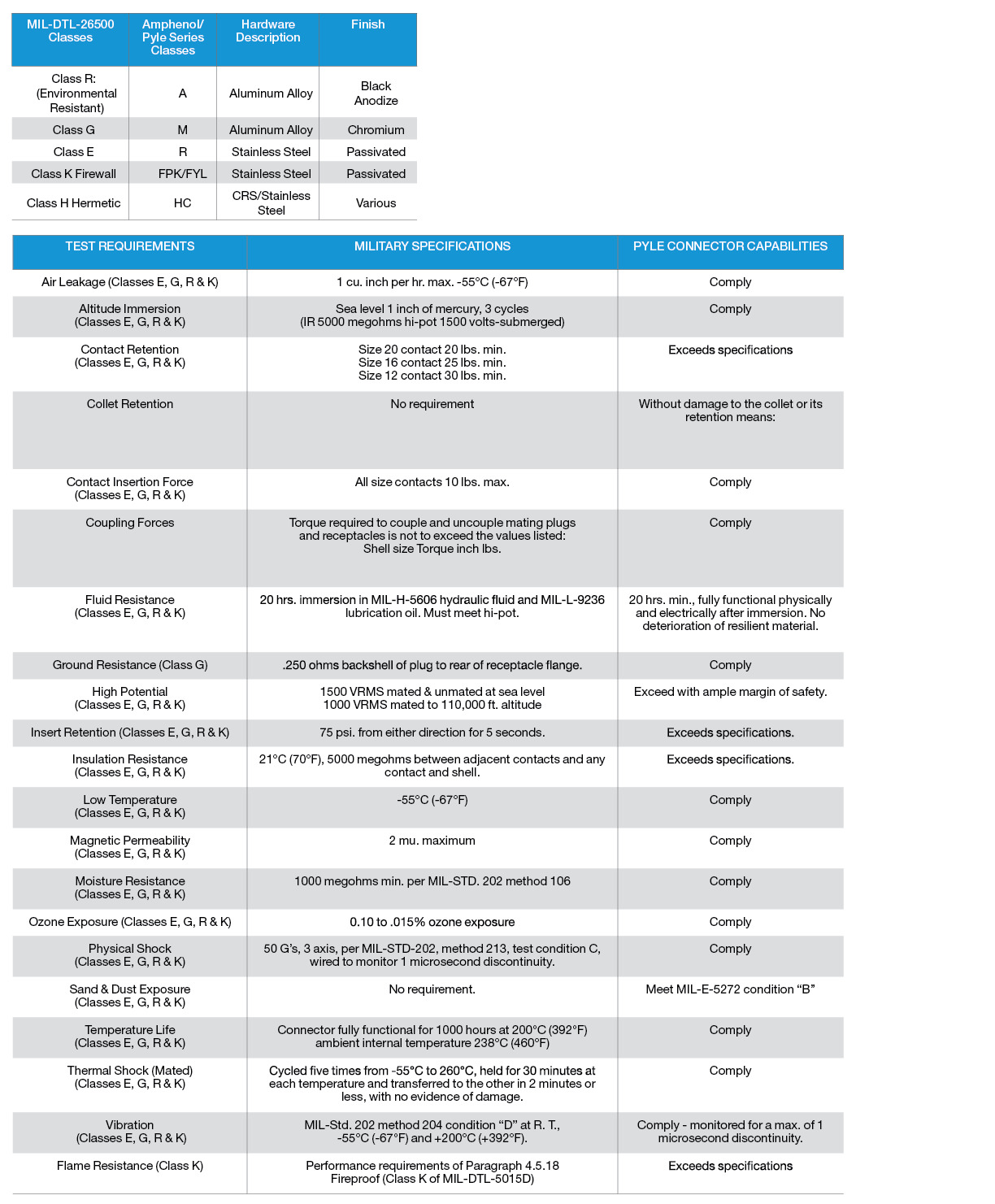

Connector Specifications
Non-Firewall Threaded/Bayonet
%20Mounted%20Receptacle,%20Bayonet_Pyle%2026500.png)
%20Mounted%20Receptacle,%20Threaded_Pyle%2026500.png)
Firewall Stainless Steel
%20Mounted%20Receptacle_Pyle%2026500.png)

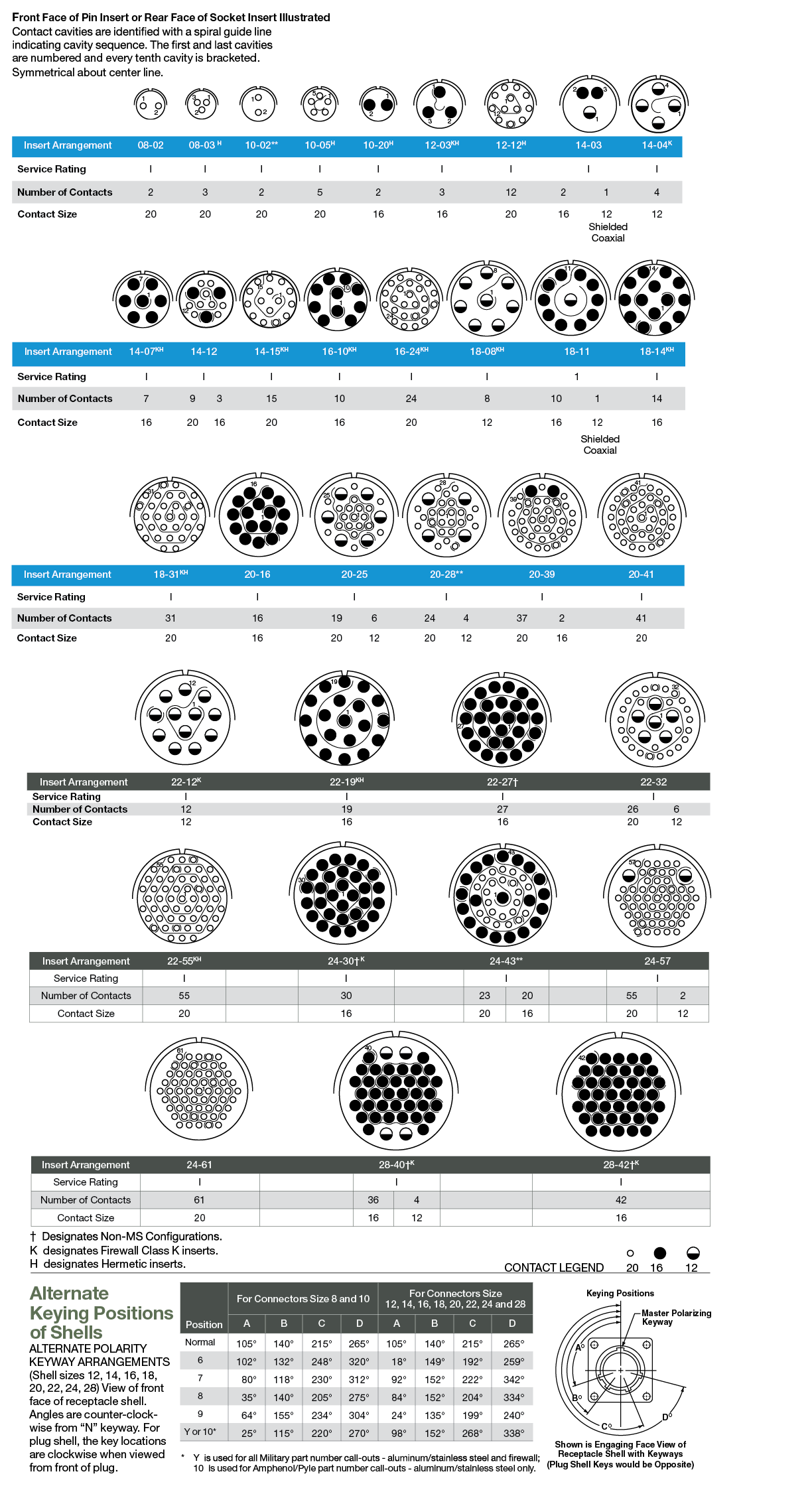

Insert Arrangements
48 Series

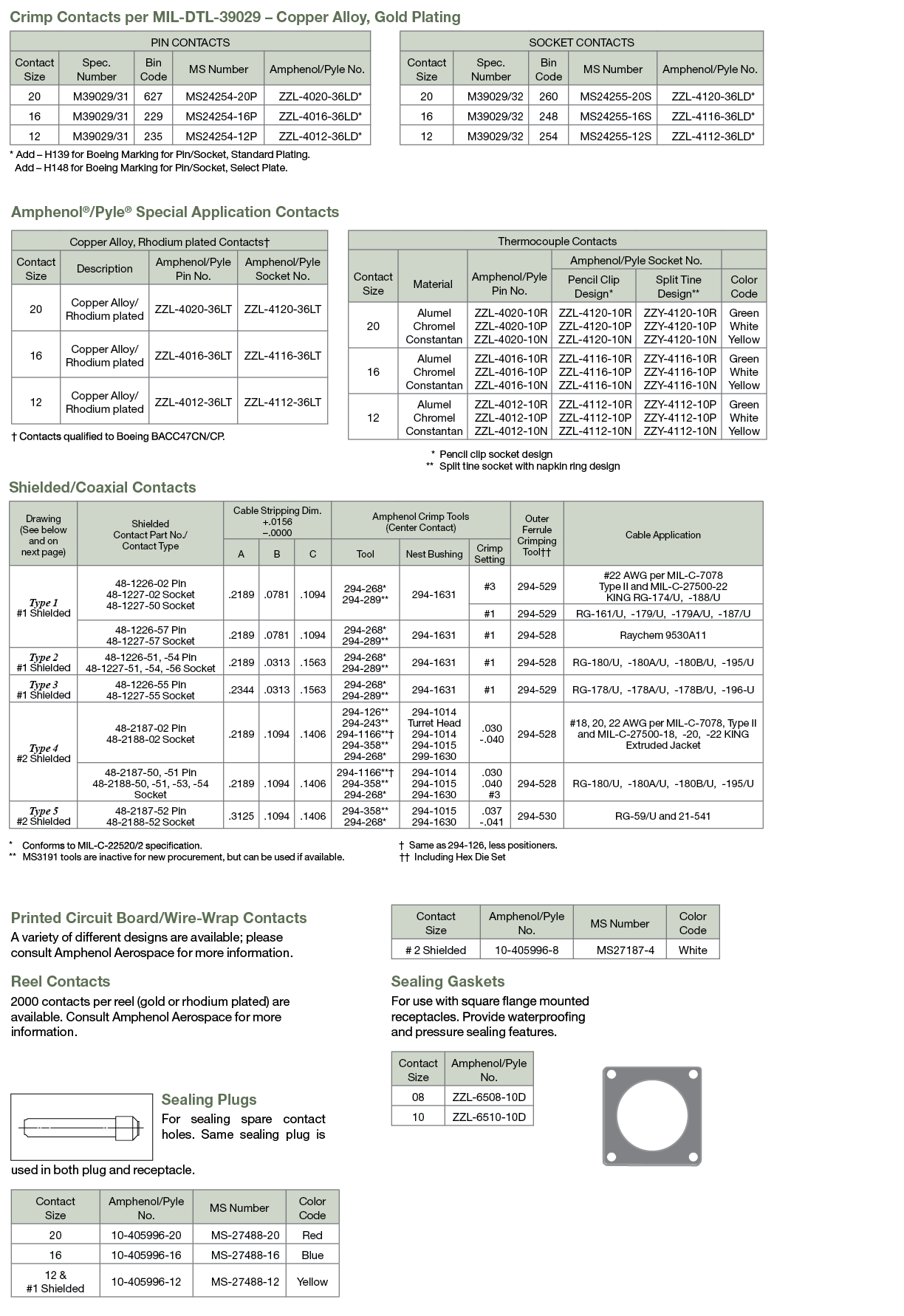

Contact Information

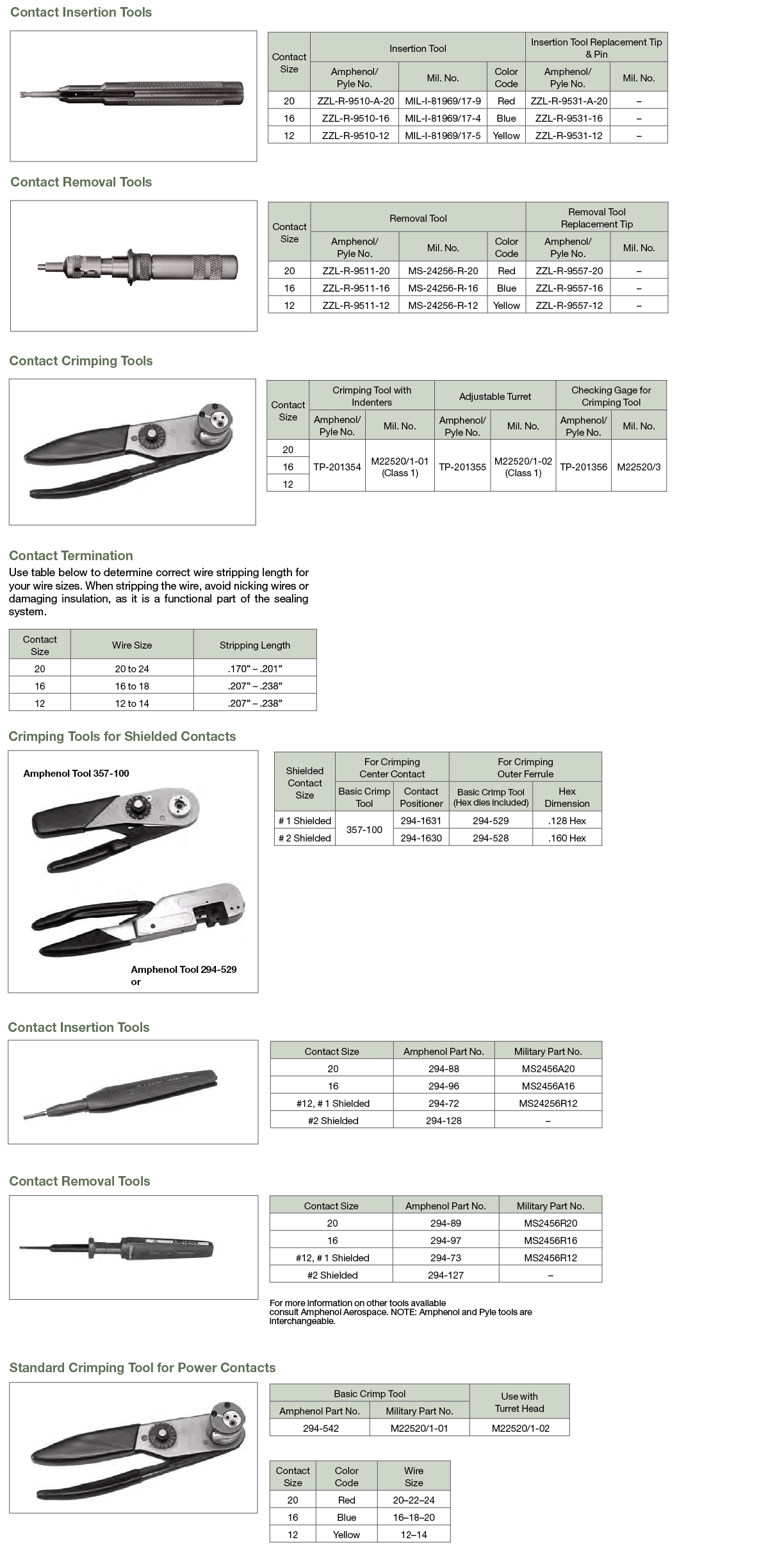

Tools

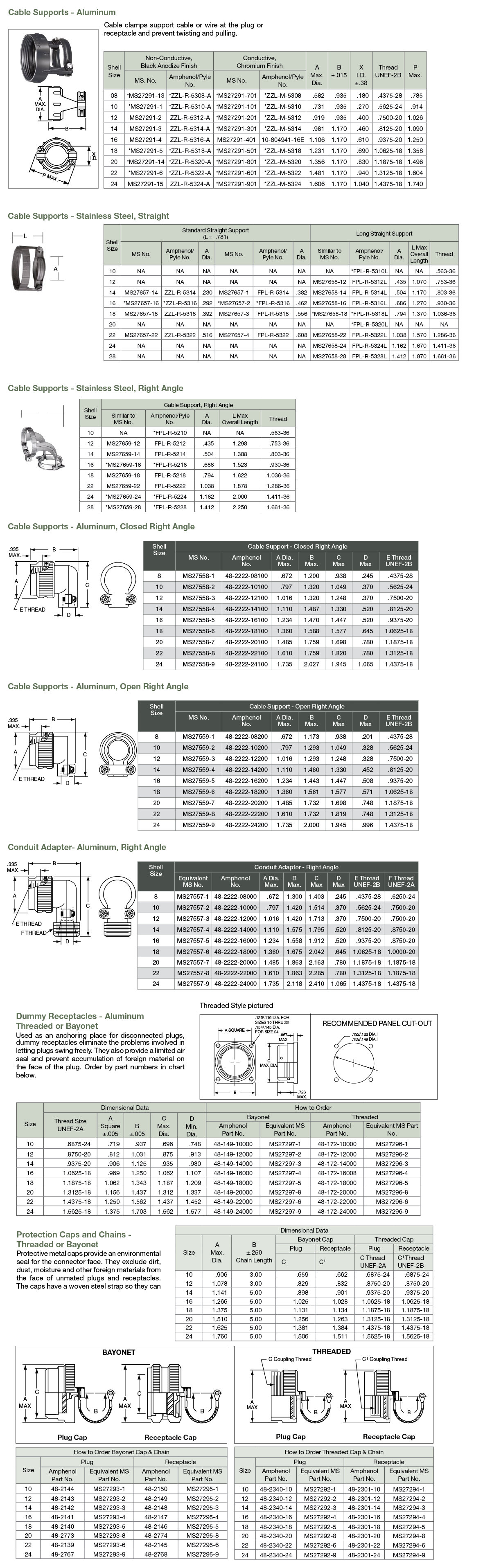

Accessories

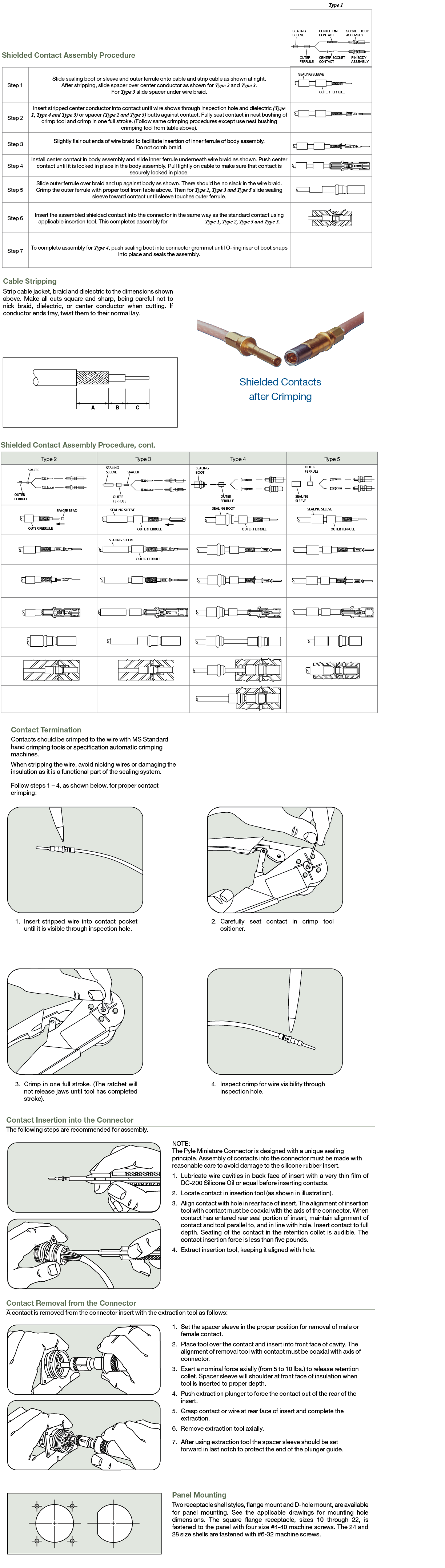

Termination and Assembly Instructions
MIL-DTL-83723 (Matrix)
Medium sized, environmentally resistant circular connector. Used for both general-purpose and high-temperature applications in commercial aerospace.
MIL-DTL-26482 Series II Connectors
Bayonet coupling connector with crimp rear insertable, rear releasable contacts.
MIL-DTL-83723 (Pyle)
Includes styles from Pyle National, with proven technology for severe environments in commercial and military aerospace markets.
AS85049 Backshells
Backshells for Military & Aerospace applications are governed by SAE, AS85049 standard and Amphenol Backshells are designed to meet the applicable requirement of these standards.
