M1965 Series
Contact:
Description:

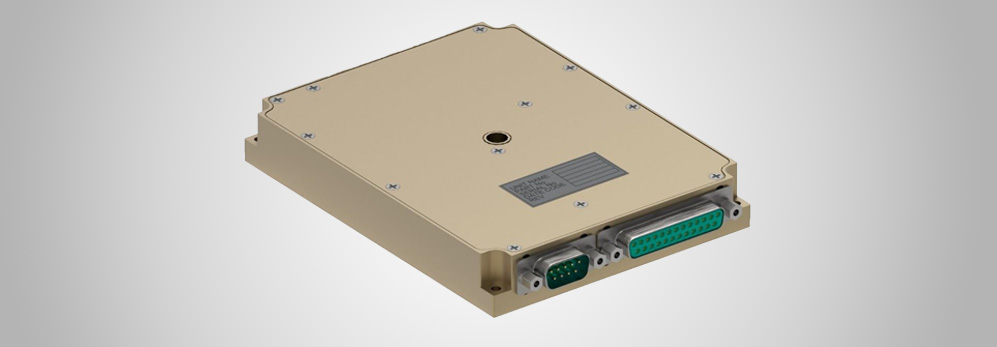

The M1965 is a series of mechanically robust, base plate cooled, high
performance, 130W triple or single output AC to DC power supplies, for Navy
shipboard, Airborne, and ground applications.
The M1965 converts 85VAC – 265VAC, 50/060/400Hz, to three or one well- regulated, filtered and protected DC Outputs.
The product meet MIL-STD requirements (specified herein).
Features & Benefits:
- AC/DC Triple outputs power supply up to 130W
- 85 to 265VAC Standard Input version
- Miniature size
- High efficiency
- High power factor (up to 96%)
- Input / Output isolation
- Fixed switching freq. (450 kHz for output converters)
- EMI filters included
- Remote inhibit (On/Off)
- Limited inrush current
- Non-latching protections:
- Overload/short-circuit
- Over temperature
