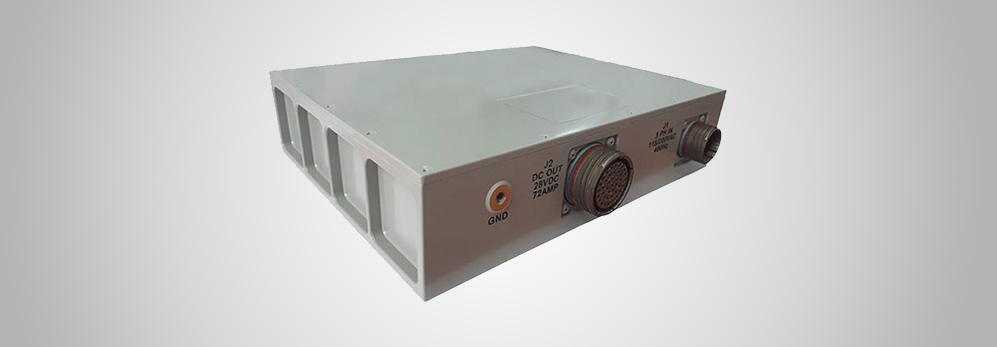

M2286 Series
Contact:
Description:
Milpower Source M2286 Series is a 2KW AC to DC, ruggedized,
high-performance power supply designed for Airborne, Ground
Mobile, Ground Fixed and other applications that are characterized
by harsh and hostile environment. It is fed from a three-phase
115VAC/400Hz power and provides a well-regulated filtered and
protected DC Output.
Features & Benefits:
- Input voltage range (3-Phase, 115VAC/400Hz) compatible with MIL-STD-704E.
- Designed to meet MIL-STD-461F
- Full galvanic isolation between Input, Chassis GND and Output.
- High efficiency (>88%) and low power dissipation.
- Enable and Inhibit inputs.
- Isolated Power Good signal.
- Up to 5 units can be paralleled (load-share) and supports up to 10KW.
- Low-drop, Blocking-diode on the output allows N+1 redundant configuration.
- Smart Over-voltage (O.V.) protection, will not trip by an O.V. failure of a parallel unit(s).
- Sustains high level of shocks and vibration, salt-fog, blowing rain, sand and dust.
- Sealed enclosure, withstands high-pressure wash-down.
- Circular D38999 connectors.
- J-STD-001B and IPC-610A Class-3 Workmanship.
- Conformal Coating on all PWBs per MIL-I-46058C and IPC-CC-830.
