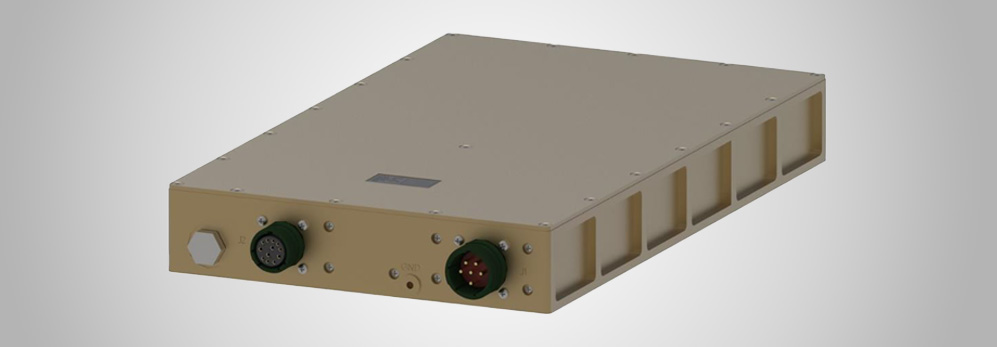

M2705 Series
Contact:
Description:
The M2705 is a baseplate-mount, conduction-cooled, 3-phase
AC/DC power supply designed for rugged airborne applications
requiring a lagging power factor presented to the 115Vac, 3-phase
bus. The unit can tolerate the normal transients of MIL-STD-704F
as well as ride through the power interrupt (50mS) required in MILSTD-
704.
This unit is sealed to protect against fluids, with a breather valve
for condensation exhaust. M2705 is based upon field proven
M2703, with a front end that provides a lagging power factor and
additional hold circuity.
Features & Benefits:
- AC/DC POWER SUPPLY Up to 1.5kW
- 115VAC/400Hz 3 phase input
- Lagging Power Factor
- 270V/1.5kW Output
- Holdup Output: 50mS @ 1500W (75J)
- Full galvanic isolation between Input, Chassis and Outputs
- EMI Filter Included
- High efficiency
- Fixed switching frequency
- Logic Inhibit
- Limited Inrush Current
- Indefinite short circuit protection with auto-recovery
- Over temperature shutdown with auto-recovery
