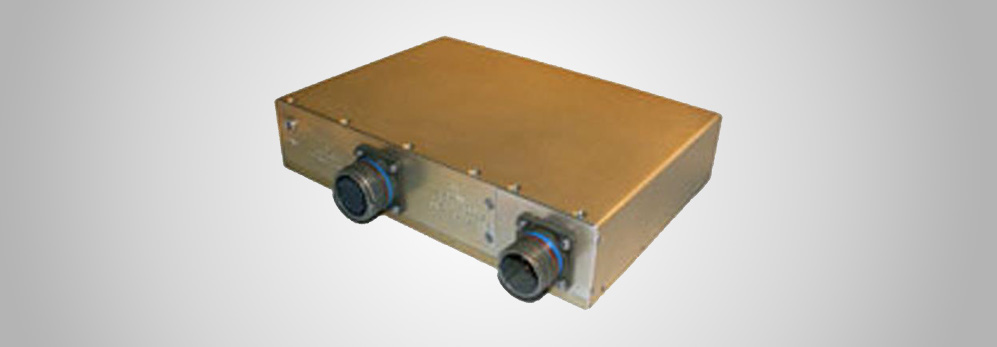

M286 Series
Contact:
Description:
The M286 is a series of mechanically robust, base plate cooled, high performance, 1.5kW AC to DC power supplies, designed for Navy shipboard applications. The M286 converts a 3-Phase 115/200VAC, 50/60Hz source or 3-Phase (3-lines), 115/200VAC, 400Hz Per MIL-STD-704F to a well regulated, filtered and protected DC Output.
Features & Benefits:
- AC/DC Single output power supply up to 1.5kW
- High Density
- Input range: 104-127VAC | 50/60Hz 3-Phase
- Can parallel units for more power
- EMI filters included
- High efficiency
- Full galvanic isolation between Input, Chassis and Outputs.
- External Inhibit (On/Off)
- Indefinite short circuit protection with auto-recovery
- Over-voltage shutdown with recovery upon toggling the AC input or the INHIBIT Input.
- Over temperature shutdown with auto-recovery
- Remote sense compensation
- Conduction cooled via the baseplate
- J-STD-001B and IPC-610A Class-3 workmanship
- Conformal Coating per MIL-I-46058C and IPC-CC-830
