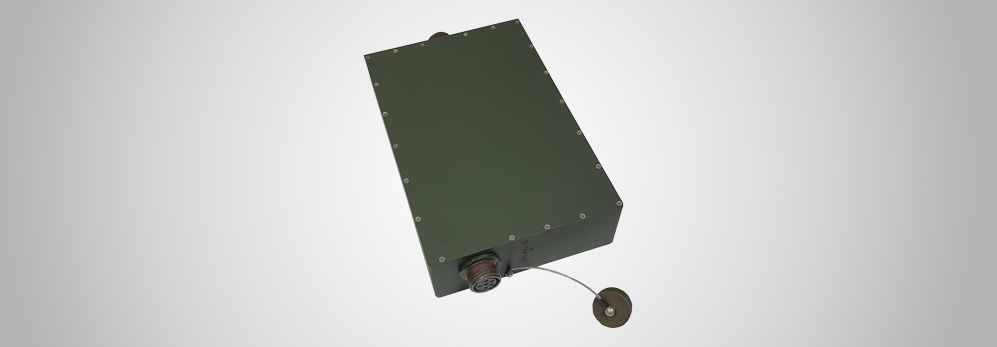

M3169 Series

The M3169 is a series of ruggedized, high-performance, base plate
cooled, high performance, sealed enclosure 1kW single output AC to
DC power supplies, for Navy shipboard, Airborne, and ground
applications that are characterized by harsh and hostile
environment.
The M3169 converts 85 VAC -265 VAC /50-60Hz or 90 VAC -180 VAC
/400Hz, to a well-regulated, filtered and protected DC Output.

• AC/DC Single output power supply up to 1kW
• 85VAC -265VAC /50-60Hz or 90VAC -180VAC / 400Hz Standard Input version, single-phase
• For extended input version - Please contact factory for more details
• High efficiency
• Wide input range
• High power factor
• Input / Output isolation
• Optional - Remote sense compensation - Please contact factory for more details
• EMI filters included
• Inrush Current Limiter
• Sustains high level of shocks and vibration, salt-fog, blowing rain, sand and dust.
• Sealed enclosure
• Non-latching protections:
  o Overload/Short-circuit
  o Output Overvoltage
  o Over Temperature
  o Input Undervoltage Lockout
