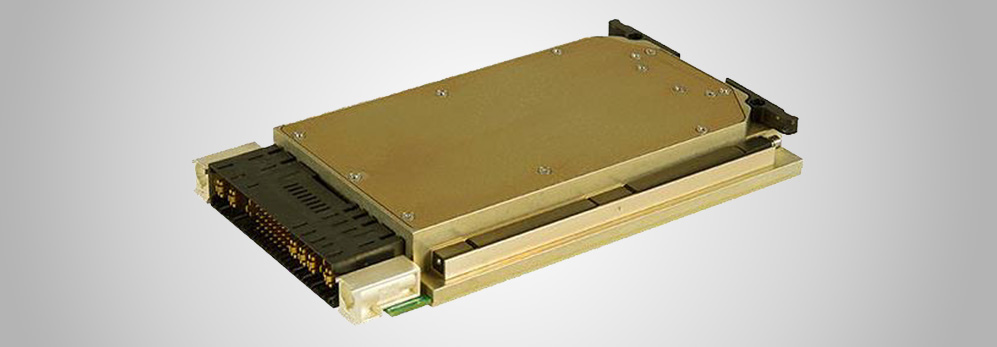

M4013 Series
Contact:
Description:
The M4013 steady state operation voltage is 18V to 48V and will continuously work up to 50V Input line. When Configurable to support MIL-STD 704/1275 transients or surges, the unit will shut down when input voltage rises above 60V or under 16V for more than 2 sec and immediate shut down under 12V
or above 100V Input. Power supply automatically recover when it’s Input goes back to normal steady state line.
Features & Benefits:
• VITA 62 compliant
• Wide input range
• Remote sense
• Fixed switching frequency (220khz)
• External synchronization capability
• Indefinite short circuit Protection
• Over-voltage shutdown with auto-recovery
• Reverse battery protection
• Over temperature shutdown with auto-recovery
• EMI filters included
• I2C communication
