M4050 Series
Contact:
Description:

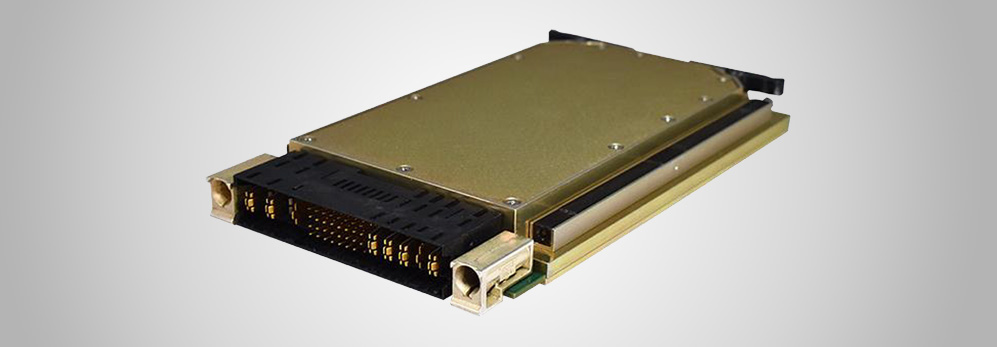

M4050 is a military grade 3U VPX, 28V DC-DC PSU card that provides six outputs per VITA 62 and is rated at 350W output power. Features include: conduction cooling, 0.8" pitch, fast initialization, reverse battery protection, internal EMI filters, I2C system management. DC input range is 18-50V per MIL-STD-704 and DO-160, but variants support ranges of 12-100V per MIL-STD-1275 and Def Stan 61-5. Designed to meet MIL-STD-810 and MIL-STD-461.
Features & Benefits:
- 3U, 0.8 PITCH, VITA 62 COMPLIANT
- FAST INITIALIZATION TIME
- 5 OUTPUTS
- OPTIONAL EXTENSION FOR HOLDUP CARD
- 150W
