M4069 Series
Contact:
Description:

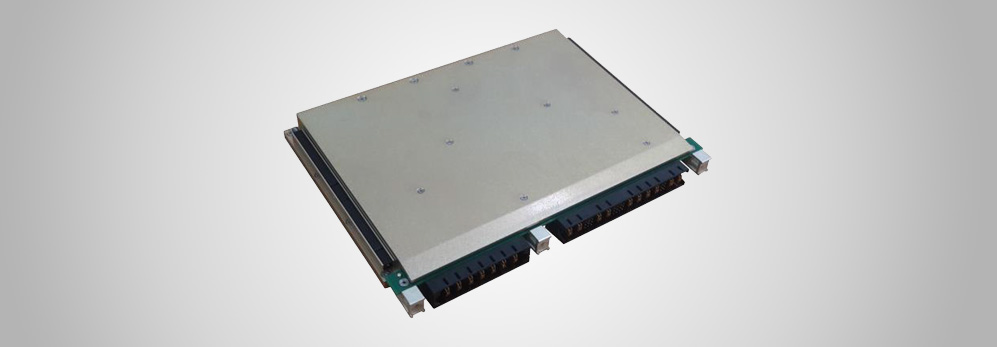

The M4069 is a rugged, highly efficient, military grade 6U VPX, 1 inch pitch, 115Vac single phase AC to DC PSU card that provides six outputs per VITA 62 and is capable of delivering up to 1200W of output power with lagging power factor. Features include: conduction cooling, internal EMI filters, I2C system management. The AC input range is 115Vac, 400Hz per MIL-STD-704 and DO-160. The M4069 is field proven and is designed to meet MIL-STD-810, MIL-STD-461.
Features & Benefits:
• VITA 62 / 6U / 1.0 Pitch
• High efficiency
• Wide input range
• Input / Output isolation
• Power Factor Correction
• Remote sense
• Fixed switching frequency
• EMI filters included
• I2C communication
• Remote Inhibit (Off/On)
• Remote Enable (On/Off)
• Indefinite short circuit protection with auto-recovery
• Over-voltage shutdown with auto-recovery
• Over temperature shutdown with auto-recovery
