M4701 Series
Contact:
Description:

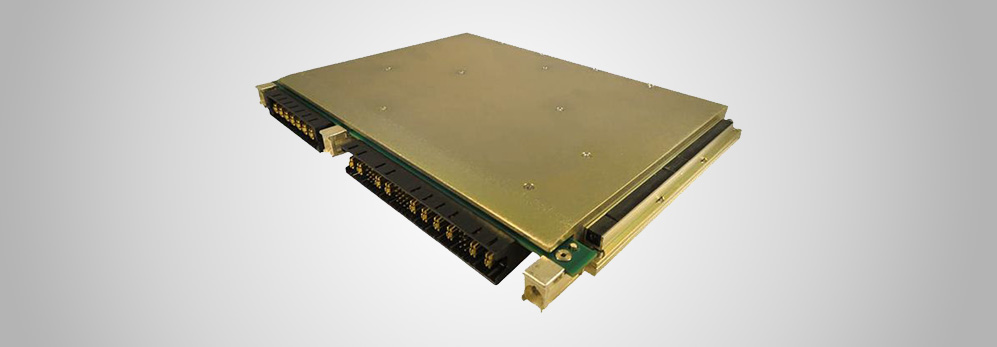

M4701 is a military grade 6U VPX, 115VAC 3 phase AC-DC, SOSA™ aligned power supply that provides 12V and 3.3VAUX per VITA 62 that is rated at 1200W output power. Features include: conduction cooling, 1" pitch, current-sharing, internal EMI filters, VITA 46.11 system management. Input range is 126-154Vac per MIL-STD-704F. Designed to meet MIL-STD-810 and MIL-STD-461.
Features & Benefits:
- VITA 62 6U
- Fixed switching frequency
- Indefinite short circuit
- SOSATM Aligned
- Parallel configuration protection with auto-recovery
- High efficiency
- 46.11 Tier 2 communication
- Over temperature shutdown
- Input / Output isolation
- External Inhibit & Enable with auto recovery
- Remote sense
- EMI filters included
