M6500 Series
Contact:
Description:

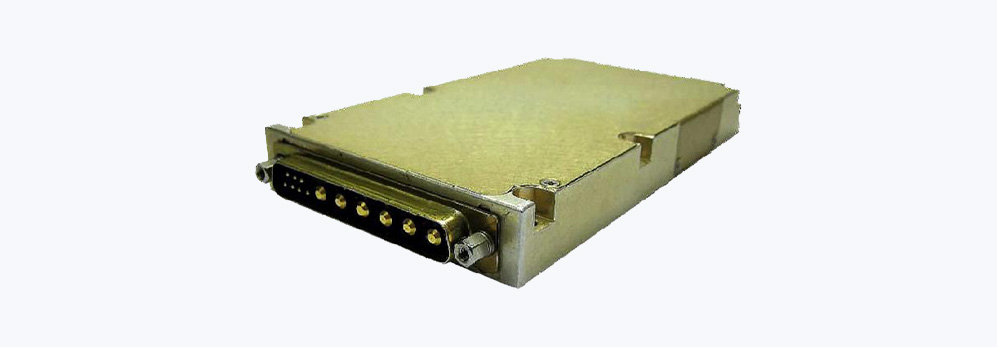

The M6500 military power supply is a rugged DC to DC converter which accepts an 18 - 48VDC input voltage range and provides a single DC output from 3.3 to 28V at up to 500W. Custom outputs available upon request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810, MIL-STD-461.
Features & Benefits:
• Miniature size
• High efficiency
• Wide input range
• Input / Output Isolation
• Remote sense
• External On/Off Inhibit
• Zero Voltage Switching Technology
• Fixed switching frequency (250 kHz)
• External synchronization capability
• EMI filters included
• Optional parallel connection
• Indefinite short circuit protection
• with auto-recovery
• Over-voltage shutdown with auto-recovery
• Over temperature shutdown with auto-recovery
