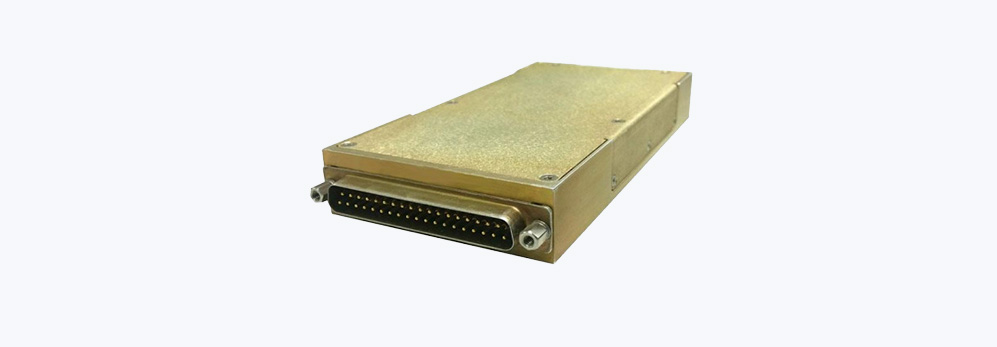

M7027 Series
Contact:
Description:
The M7027 military power supply is a rugged DC to DC converter which accepts an 18 - 48VDC input voltage
range and provides a single DC output from 5 to 50V at up to 500W. Custom outputs available upon
request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810,
MIL-STD-461.
Features & Benefits:
• Wide input range
• Input / Output isolation
• High efficiency – up to 90%
• High Density – up to 47 W/in³
• EMI filters included
• Remote sense compensation
• Parallel connection option
• Remote sense compensation
• Parallel connection option
• Fixed switching freq. (250kHz)
• External sync. capability
• Remote inhibit (on/off)
• Non-latching protections:
o Overload / short-circuit
o Input OV/UV lockout
o Output over-voltage
o Over temperature
