M7032 Series
Contact:
Description:

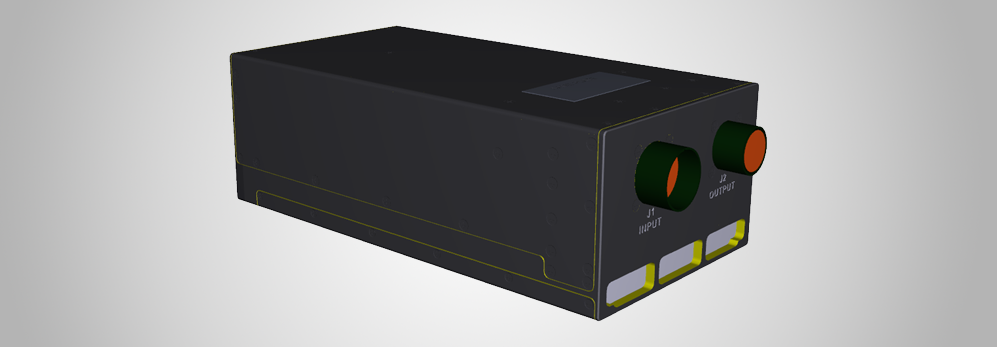

The M7032-101 is a mechanically robust, self-cooled (internal fan),
low-weight, high performance DC to AC Inverter, designed for rotarywing
aircraft and high reliability airborne applications. The M7032
converts 28VDC (MIL-STD-704F) to a well-regulated and protected,
low-distortion 115VAC 400Hz Sine-wave.
Features & Benefits:
- Self-cooled unit. Cooling air confined to a close-channel heatsink.
- Wide operating temperature range (-55°C to +71°C ambient).
- Complies with MIL-STD-704F (28VDC) and MIL-STD-461G.
- Reliably withstands Rotary-wing high-level induced vibration.
- Low weight, 7.3 pounds.
- Clean, low-distortion sine-wave output, even with non-linear load.
- High Efficiency, 88% at full load.
- Enable input, AC-Good and Over temperature output signals.
- Line-contactor’s drive output.
- Overtemperature, Overload, Over/Under-voltage and Over/Under-frequency protections.
- Full galvanic isolation between Input, Chassis and Output.
- MIL-DTL-38999 Connectors.
- J-STD-001B and IPC-610A Class-3 workmanship.
- Conformal Coating per MIL-I-46058C and IPC-CC-830.
