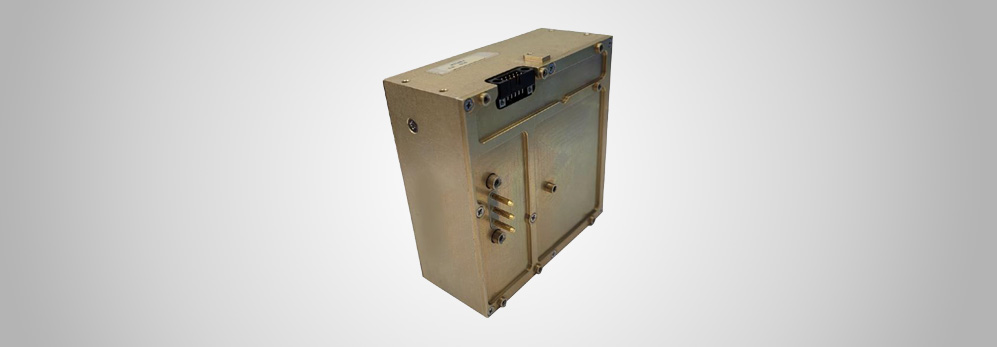

M7049 Series

M7049-103 is a 750W high efficiency switching regulator, that when fed from the rectified output of a 3-phase Permanent Magnet Generator (PMG), will provides a well-regulated, filtered, and protected 28VDC Output. The
M7049-103 is designed for parallel current-sharing operation, allowing the user to parallel up to eight M7049-103 units and supports up to 6KW (7.2KW for 30 sec.). For typical application see Figure 1. Note: P/N M7049-103 is identical to M7049-102 but without the pre-assembled “Piggyback” I/O filter board that provides additional filtering and convenient Bus-bars terminals. The M7049-103 is intended for users who cannot accommodate the additional 16mm that the I/O filter board adds to the 42mm depth of the Module.

• 900W/30 sec. Over-load capability
• Up to 8 Modules can be paralleled (current-share), supporting up to 6KW load (7.2KW for 30 seconds).
• Built-in EMI Input & Output Filters
• 30 to 200 VDC input voltage range, compatible wit the rectified output of most PMG’s.
• Crowbar over voltage protection
• Overload, Over-voltage, and Over-temp protections
• No external capacitors required
• No minimum load required
• Base-plate cooled (by external heatsink)
• On/Off input and BIT output.
• Remote Sense lines.
• Upon request, the output voltage can be factory trimmed above or below 28Vdc.
