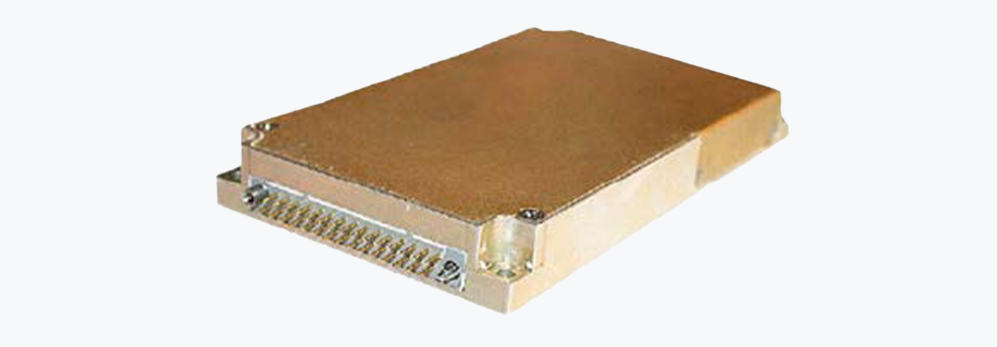

M7128 Series
Contact:
Description:
The M7128 military power supply is a rugged DC to DC converter which accepts an 18 - 78VDC input voltage range and provides a single DC output from 1.5 to 78V at up to 200W. Custom outputs available upon request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810, MIL-STD-461.
Features & Benefits:
• Miniature size
• High efficiency
• Wide input range
• Up to 29 W/IN³
• Input / Output isolation
• Remote sense
• Parallel connection of modules
• Redundancy connection
• Fixed switching frequency (250 kHz)
• External synchronization capability
• TTL logic enable
• EMI/RFI filters included
• Output voltage adjustment with external resistor
• Indefinite short circuit protection with auto-recovery
• Over-voltage shutdown with auto-recovery
• Over temperature shutdown with auto-recovery
