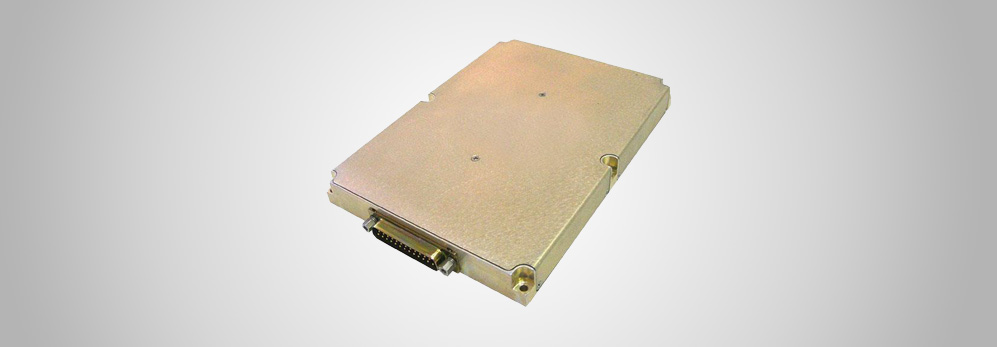

M7338 Series

The M7338 is a series of mechanically robust, base-plate cooled,
high performance, power supplies, designed for Ground Mobile
(MIL-STD-1275), Airborne (MIL-STD-704) and other Hi-Reliability
applications where 28VDC has to be converted to a tightly regulated,
filtered and protected DC outputs.

• DC/DC Triple outputs power supply up to 600W
• 18 to 48VDC Standard Input version
• For extended input version - Please contact factory for more details
• Miniature size
• High efficiency
• High density – up to 23.2 W/in3
• Wide input range
• Input / Output isolation
• EMI filters included
• Fixed switching freq. (250 kHz)
• External sync. capability
• Remote Inhibit (On/Off)
• Remote sense compensation
• Non-latching protections:
  o Overload/short-circuit
  o Output overvoltage
  o Input UVLO/OVLO
  o Over temperature
