M8657 Series
Contact:
Description:

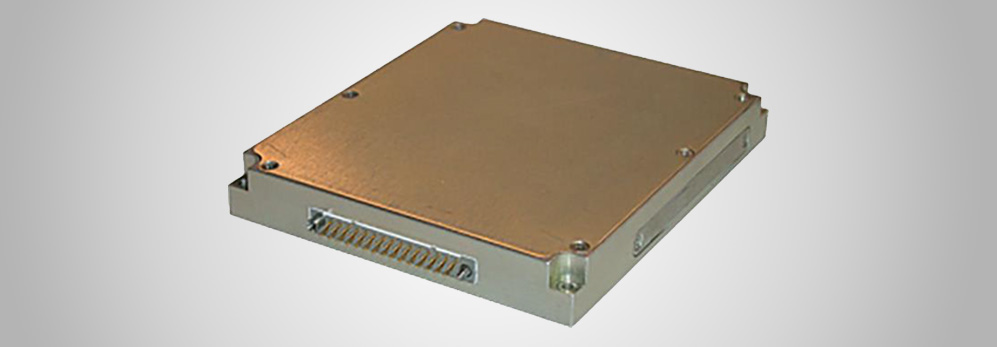

The M8657 military power supply is a rugged Five output DC to DC converter which accepts an 18 - 70VDC input voltage range and provides DC outputs from 3.3 to 28V at up to 125W. Custom outputs available upon request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810, MIL-STD-461.
Features & Benefits:
• Miniature size
• High efficiency
• Wide input range
• Input Output isolation
• Fixed switching frequency (250 kHz)
• External Synchronization capability
• TTL logic enable
• EMI/RFI filters included
• Indefinite short circuit protection with auto-recovery
• Over-voltage shutdown with auto-recovery
• Over-temperature shutdown with auto-recovery
