Matrix 5015 Breakaway Lanyards

Product Matrix 5015 Breakaway Lanyards Product Matrix 5015 Breakaway Lanyards

Contact:

Matt Kistner
Product Manager
+1 (607) 643-5208
[email protected]

Description:

Push-Pull, quick disconnect coupling is available in a straight plug that can be ordered with or without a lanyard release mechanism. Additional receptacle adapter needed.

Features & Benefits:

  • Proprietary quick disconnect plug, with or without lanyard available
  • Completely sealed against environmental extremes
  • Seven mounting styles, in shell sizes 8 to 40
  • Classes include aluminum or stainless steel shells, or firewall capability
  • Accommodation of contact sizes 0 to 16
  • Over 100 insert arrangement patterns available, accommodating from a minimum of 1 to a maximum of 85 circuits

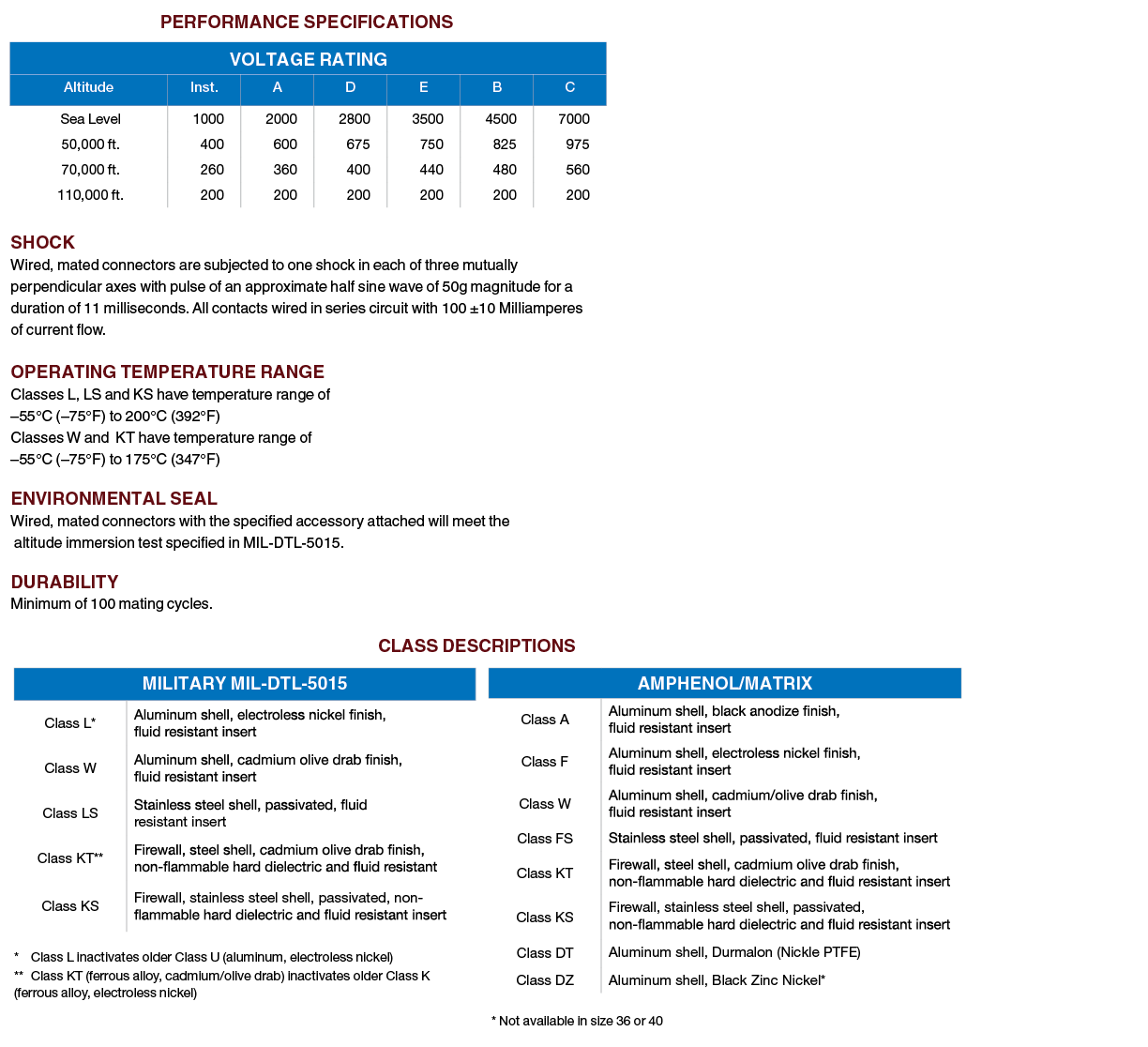

Performance Specifications

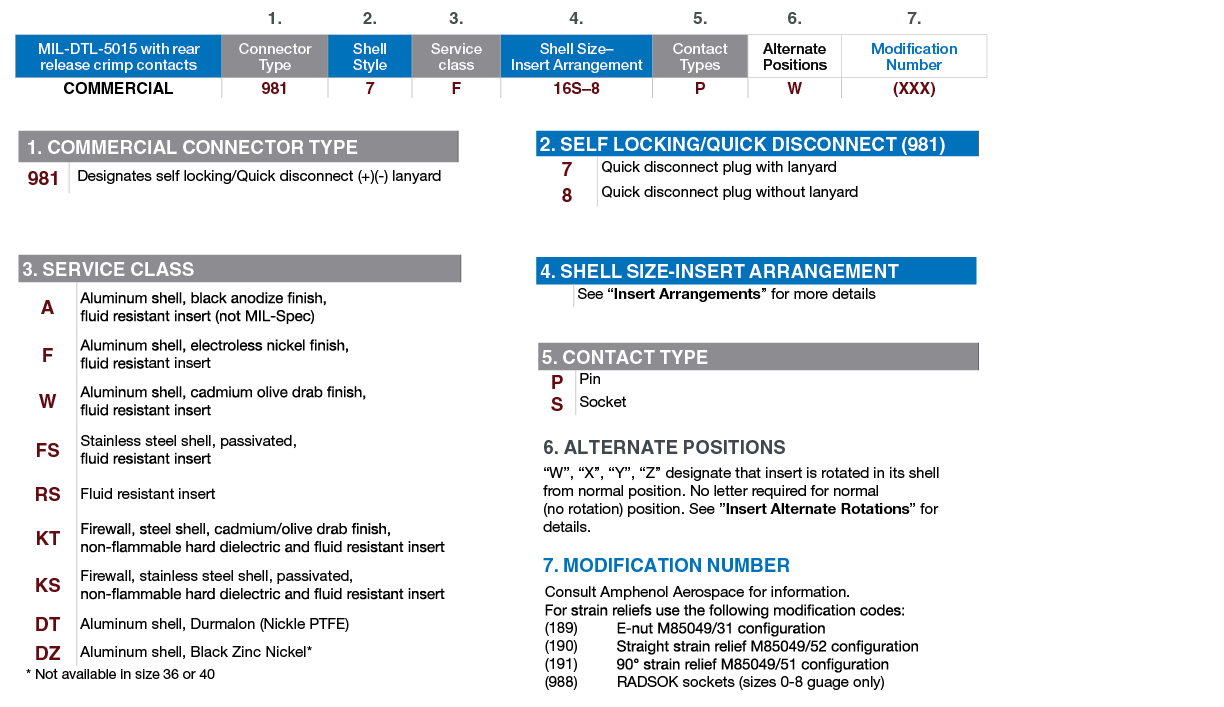

How to Order Guide

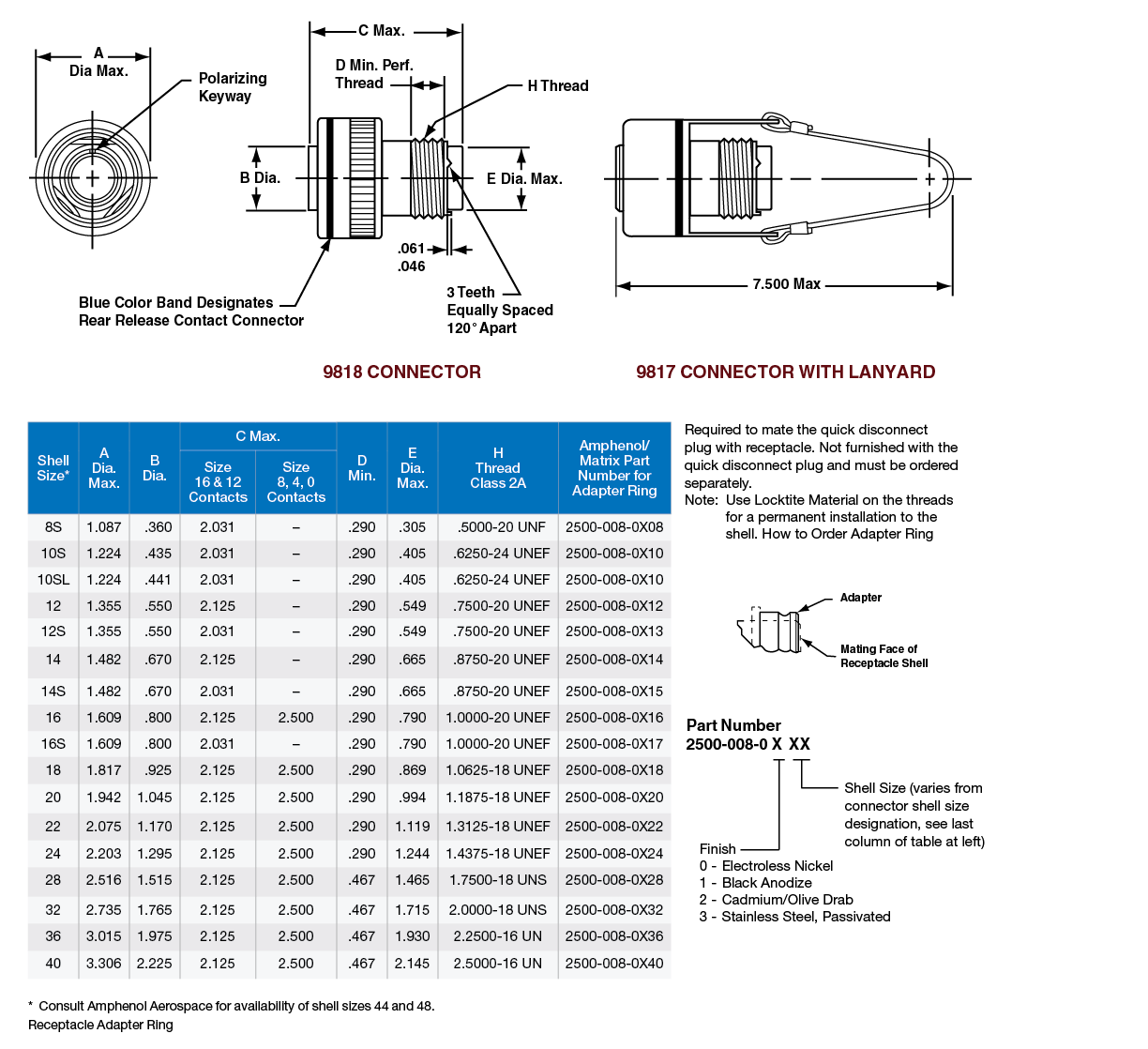

Dimensions

Insert Chart

Insert Arrangements

Insert Alternate Rotations

Contact Information

Assembly Tools

MIL-DTL-5015, Matrix Catalog
This series provides an improved alternative to the older MIL-C-5015 solder type. It bridges the gap between an old connector standard and the environmental and high-performance needs of current technologies.
