Single Channel Optoelectronic Transceivers
Contact:
Description:
Amphenol’s single channel optoelectronic transceivers utilize our long trusted MIL-DTL 38999 connectors along with a Samtec ribbon to convert 1GBase-SX or equivalent & 1GBase-FX creating a perfect fit for any application being used in harsh environment avionics, ground systems, or naval applications.
Features & Benefits:
- Ethernet support from 1 Mbps to 4.256pbs
- MIL-DTL-3899 to Twinax cable on a Samtec ribbon
- TX/RX using 1GBase-SX or equivalent & 1GBase-FX
- 850nm & 1300nm multimode; single made on request
- -40 °F (-40 °C) to 185 °F (85 °C) operating temperatures

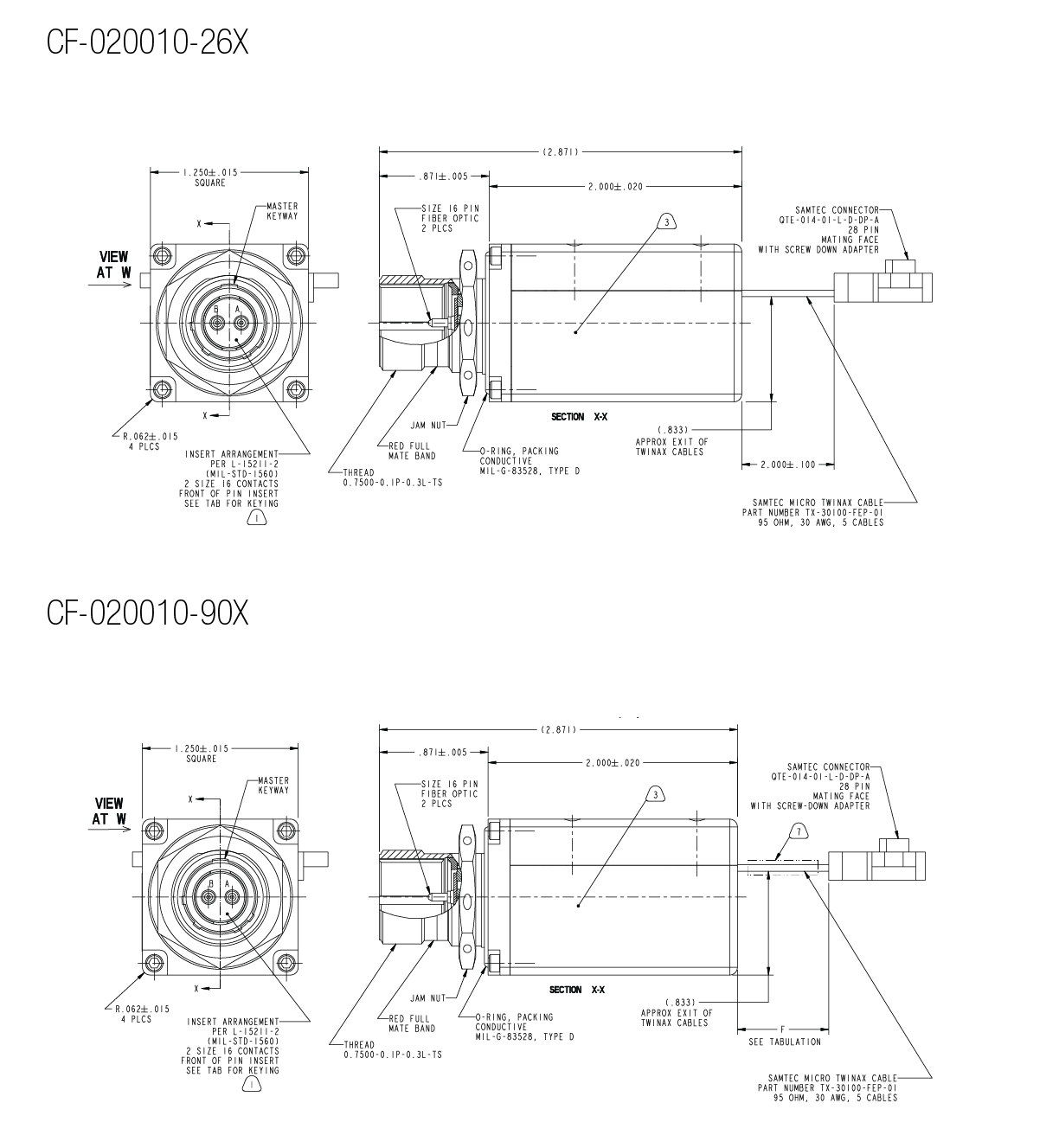

Dimensions

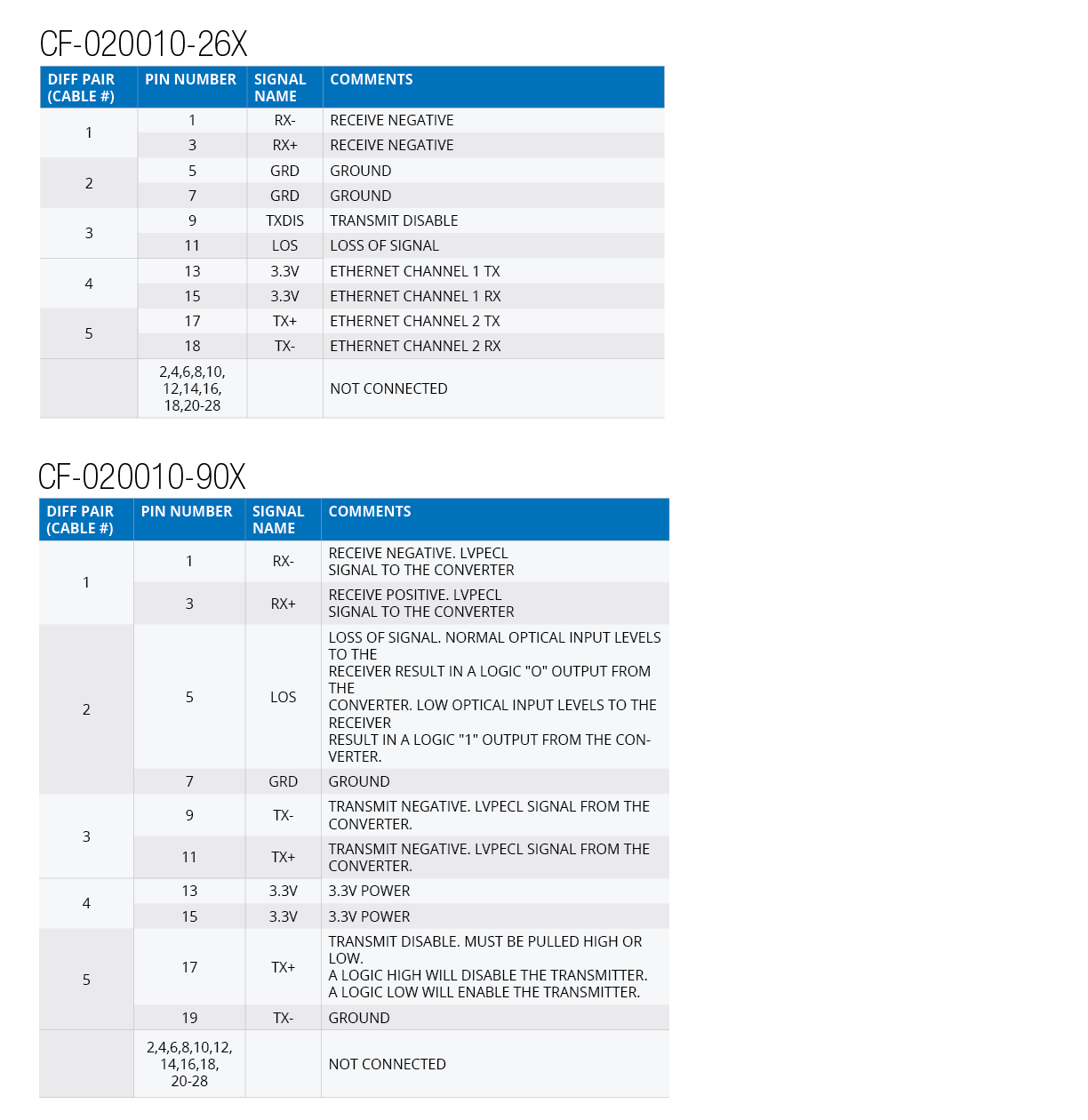

Pin-Out Charts
