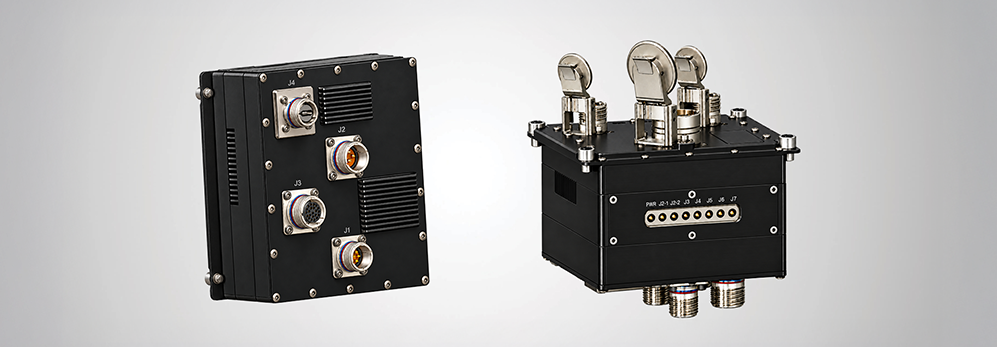

Titan USB 3 Data and Power Converter, Ethernet Switch
Contact:
Description:
Titan bridges three USB 3.2 channels with power delivery to 1G and 10G Ethernet, giving the platform high-speed data and power over a single compact interface. Network connectivity includes two 10GBase-T channels and two 1GBase-SX fiber channels that can also operate at 10G, with six additional channels reserved for future growth. A built-in managed switch supports PTP along with other Layer 2/3 features, while integrated security and built-in test (BIT) capabilities meet mission requirements. Connector shells are tin zinc nickel plated aluminum alloy on the USB and RJ field connectors (J4 through J7) and nickel-plated composite on the D38999 connectors (J1 through J3), with protective caps, LEDs, and labels included.
Features & Benefits:
- 3X USB 3.2 channels with power delivery linked to 10G Ethernet (up to 25 watts per channel)
- 2X channels supporting up to 10GBase-T
- 2X channels of 1GBase-SX (with 10G capability)
- 6X additional channels reserved for expansion, not connected to fiber optic ports
- 28V aircraft power converted internally
- Managed switch featuring PTP and other layer 2/3 functionalities
- TSN features - 802.1CM-2018 Profile B, 802.1AS-2020, Qav, Qbv, Qbu, Qci, CB, 802.3br
- Security protocols and BIT specifications
- Ruggedized enclosure qualified high altitude operational environment
- J4, J5, J6, and J7 connector shells made of tin zinc nickel-plated aluminum alloy (USB / RJ Field)
- J1, J2, and J3 connector shells are nickel plated composite (D38999)
- Connector caps, LEDs, and labels
