Warrior Grip Soldier-Worn Push-Pull Connectors

Product Warrior Grip Soldier-Worn Push-Pull Connectors Product Warrior Grip Soldier-Worn Push-Pull Connectors

Contact:

Peter Cook
Product Manager
+1 (607) 563-5519
[email protected]

Description:

Amphenol's Warrior Grip series is the only Nett Warrior-style connector to bring fast charging 10 amp capability directly to the warfighter.

Leveraging Amphenol’s extensive experience with the 2M804 push-pull series, Warrior Grip connectors are designed to offer a solution that exceeds the rigorous requirements of the US Army’s Nett Warrior program. The Warrior Grip series brings with it a number of enhancements to the standard 2M804 design, including a unique mate-force rating for even quicker disconnect and selectively plated shells for improved conductivity. With these enhancements, the Warrior Grip series is tailor made for nearly any soldier-worn application.

When paired with our 10 Amp Warrior Grip Socket Contact system, you can get even more power out of your application in the same lightweight package. Designed to push the size #23 contact to new limits without the downside of excessive heat rise, the Warrior Grip socket contact system is fully backwards compatible with existing size #23 pin designs. The system yields an average 26% improvement in heat rise when compared to the competition, and meets all applicable MIL-STD-1472 temperature exposure limits.*

Warrior-Lok is the first ever locking 2M804 style receptacle, designed specifically for the war fighter, fully compatible with all Nett Warrior plugs and featuring an integrated locking mechanism to prevent accidental unmating while requiring reduced force to mate and unmate.

Features & Benefits:

FEATURES AND BENEFITS

  • COMPATIBILITY: Intermateable with Existing Nett Warrior Push-Pull Connectors
  • POWER: Warrior Grip Contact System - 10 Amp Capability in a Size #23 Contact
  • LOCKED & LOADED: Unmating Force of 13 +/- 3 lbs; won't disconnect until they should
  • VERSATILITY: Diverse Range of Mounting Options for Both Plugs and Receptacles

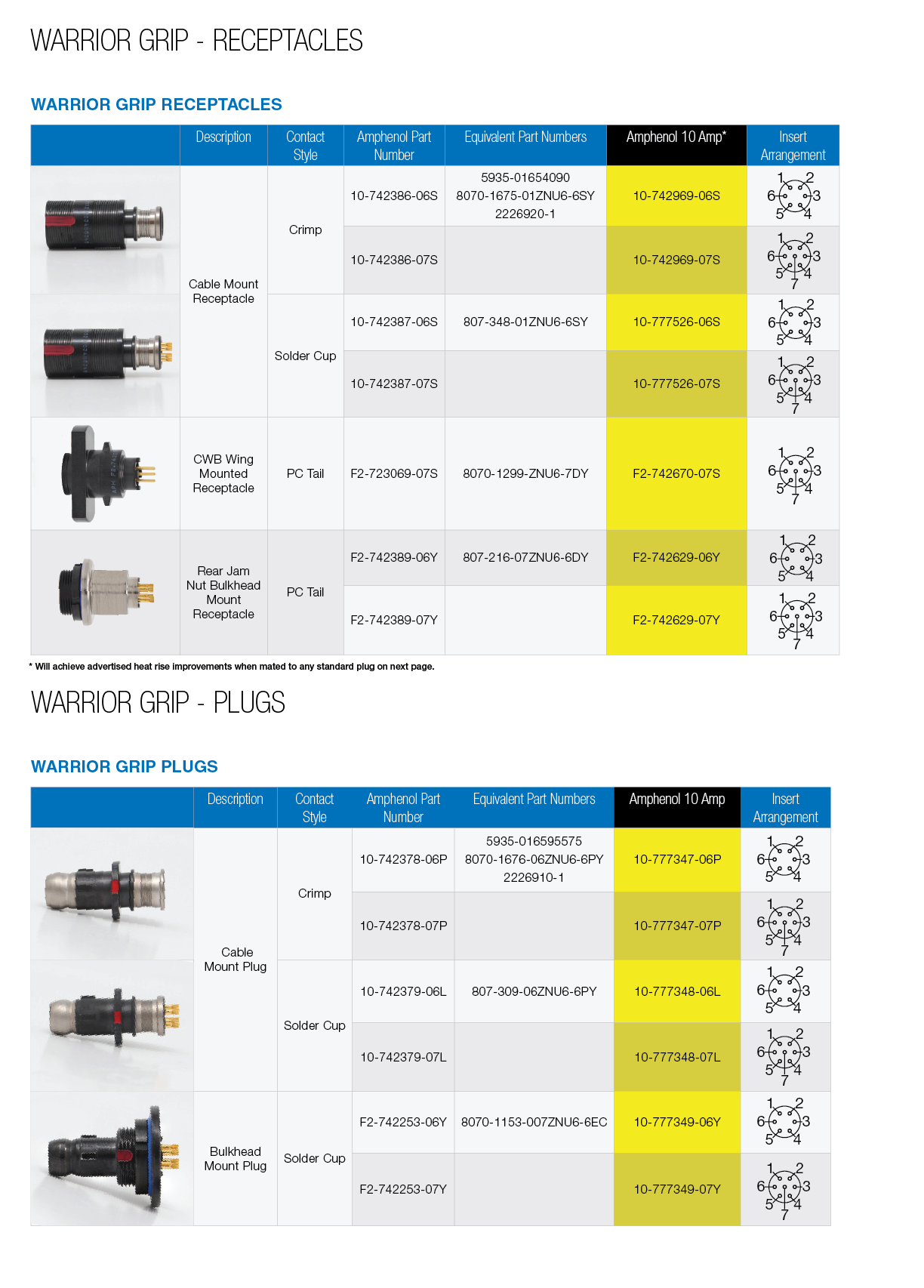

How to Order

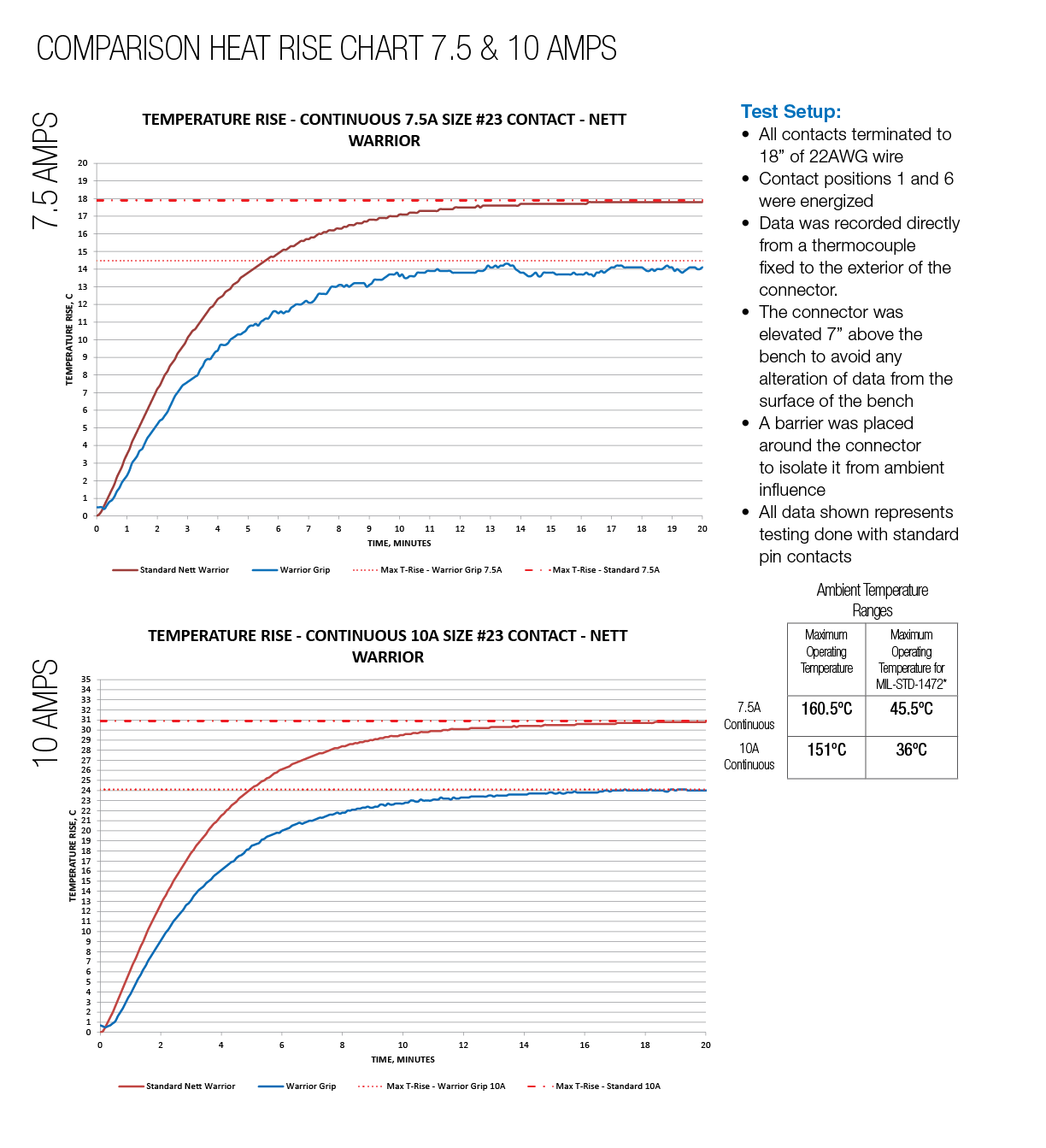

Heat Test Results

Warrior Grip & Warrior-Lok
Amphenol's Warrior Grip Series is the only NETT Warrior-Style Connector to bring fast charging 10 AMP capability directly to the Warfighter.
Warrior-Lok Series Push-Pull Connectors
Warrior- Lok is the first locking receptacle connector for the Nett Warrior program and other soldier-worn applications.
