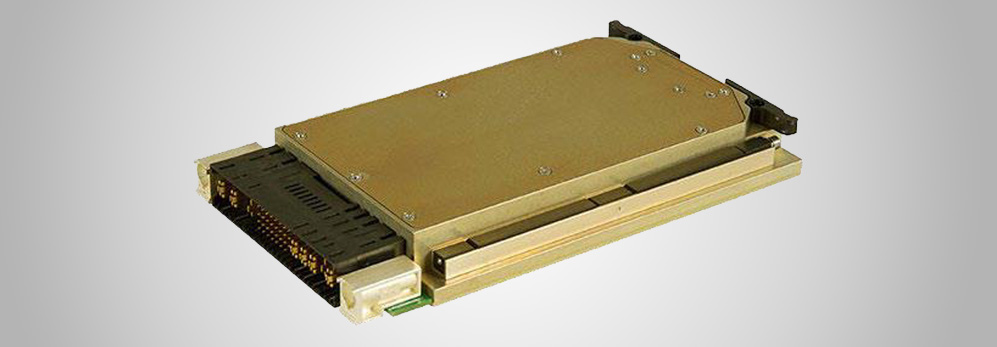

M4365 Series

M4365 is a military grade 3U VPX, 28V DC-DC PSU card that provides six outputs per VITA 62 and is rated at 350W output power. Features include: 1" pitch, fast initialization, reverse battery protection, internal EMI filters, I2C and VITA 46.11 system management, current-sharing. DC input range is 18-50V per MIL-STD-704 and DO-160, but variants support ranges of 12-100V per MIL-STD-1275 and Def Stan 61-5. Designed to meet MIL-STD-810 and MIL-STD-461.

• VITA 62 COMPLIANT
• 3U VPX FORM FACTOR
• DC/DC CONVERTER
• 6 OUTPUTS
• 600W (700W PEAK)
• Current Share for VS# Outputs
• Input Options:
   o MIL-STD-704
   o MIL-STD-1275
• System Management
Protocol - VITA 46.11
• Cyber secure
