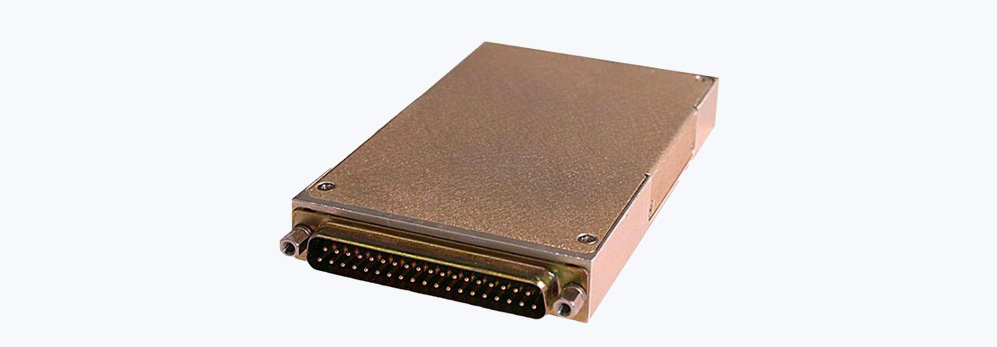

M7228 Series
Contact:
Description:
The M7228 military power supply is a rugged DC to DC converter which accepts an 18 - 48VDC input voltage
range and provides a single DC output from 2 to 15V at up to 200W. Custom outputs available upon
request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810,
MIL-STD-461.
Features & Benefits:
• Miniature size
• High efficiency
• Wide input range
• Input / Output isolation
• Remote sense
• External On/Off Inhibit
• Parallel connection with current share
• Redundancy connection
• Fixed switching frequency (250 kHz)
• External synchronization capability
• EMI/RFI filters included
• External output modification
• Indefinite short circuit protection with auto-recovery
• Over-voltage shutdown with auto-recovery
