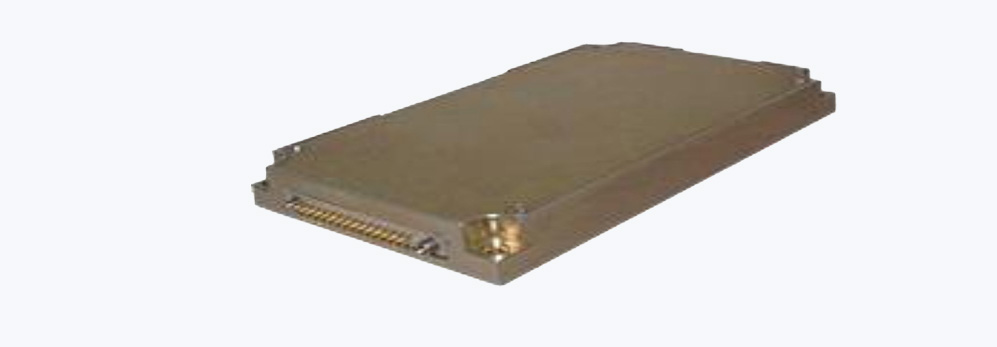

M7318 Series
Contact:
Description:
The M7318 military power supply is a rugged DC to DC converter which accepts an 18 - 48VDC input voltage
range and provides a single DC output from 3.3 to 50V at up to 200W. Custom outputs available upon
request and the unit is Designed to meet military standards, MIL-STD-704, MIL-STD-1275, MIL-STD-810,
MIL-STD-461.
Features & Benefits:
• Wide input range
• Input / Output isolation
• High efficiency – up to 90%
• Over 40dB ripple rejection
• EMI filters included
• Remote sense compensation
• Current sharing available
• Redundancy connection
• Fixed switching frequency (250 kHz)
• External synchronization capability
• Fixed switching freq. (250 kHz)
• External sync. capability
• Remote inhibit (on/off)
• Non-latching protections:
o Overload / short-circuit
o Input OV/UV lockout
o Output over-voltage
o Over temperature
