M8187 Series
Contact:
Description:

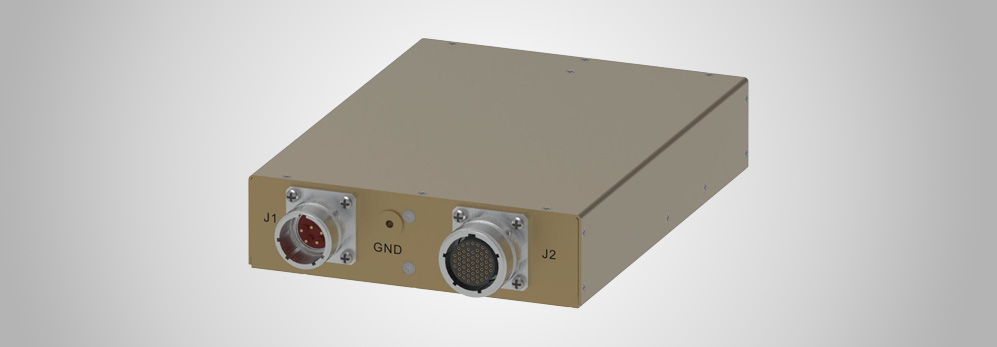

M8187 is a 2KW DC to DC, ruggedized, high-performance power
supply designed for Airborne, Ground Mobile, Ground Fixed and
other applications that are characterized by harsh and hostile
environment. It is fed from a 270VDC power and provides a wellregulated
filtered and protected 28VDC DC Output.
Features & Benefits:
- DC/DC Single output converter.
- Input voltage range 270VDC per MIL-STD-704F for normal and abnormal transients.
- Output: 28VDC / 2kW.
- Baseplate cooled unit.
- Designed to meet MIL-STD-461G unshielded output power cables.
- Full galvanic isolation between Input, Chassis GND and Output.
- High efficiency 85% or better.
- Inhibit input.
- Units support paralleled (load-share) operation with equivalent units.
- Overvoltage Protection, Overcurrent Protection and Over Temperature Protection.
- Circular D38999 connectors.
