2M Python
Contact:
Description:

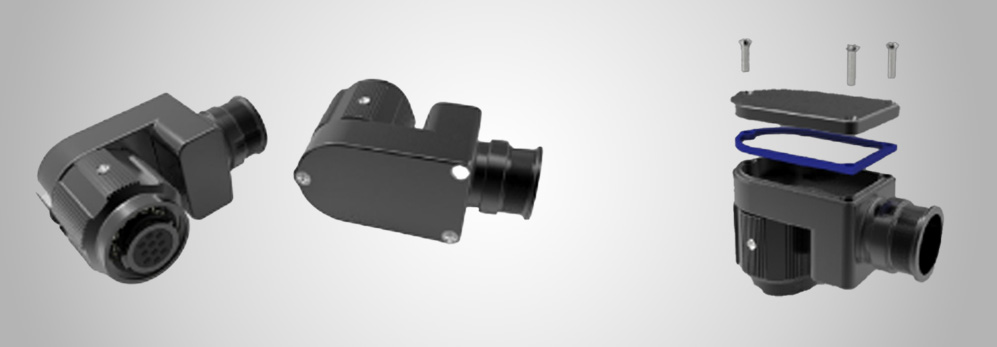

2M Python is a low profile EMI/RFI plug and backshell combo. This innovative combination reduces space requirements without compromising on ruggedness or shielding performance. Available in 2M801 Series, 2M804 Series, and 2M805 Series. Python assemblies provide superior low profile cable routing and 2M Micro-miniature connector performance all-in-one.
Features & Benefits:
SPACE SAVINGS
- This plug and backshell combo design saves space, with a minimum height and superior EMI performance
EASY MAINTENANCE
- The rear removable cover makes it easy to cut wires and remove contacts for maintenance.
SIMPLE ASSEMBLY
- Assembles with crimp or solder cup size 23 contacts.
- Multiple cable entry options available for eachconnector size (rear opening)
KEY ROTATIONS
- All key rotations are available as well as several connector clockings (rotating main key).
2M805 Tri-Start Threaded Coupling
Tri-Start threaded, ruggedized miniature connectors that meet D38999 requirements at half the size and weight.
2M804 Push-Pull Quick-Disconnect
Ruggedized, push-pull miniature connectors with multiple options for soldier-worn applications.
2M803 1/4 Turn Bayonet Coupling
General purpose, bayonet-coupling miniature connectors for light-duty applications that require frequent disconnect.
2M801 Dual-Start Acme Threads
Dual-Start threaded miniature connectors for applications that require compatibility with existing technologies or cables.
2M Space Saver
The 2M Space Saver right-angle EMI/RFI low-profile plug and backshell combination reduces the profile of your plug by 50% compared to a standard 2M801 while maintaining ruggedization and dependable shielding.
