AP-93 - 1000 Hour Salt Spray REACH/RoHS Compliant Plating

Product AP-93 Plating Product AP-93 Plating

Description:

The first D38999 RoHS compliant 1,000 hour salt spray resistant plating approved by the

Defense Logistics Agency (DLA)
for the Class AA Qualified Product List (QPL).

AP-93 is a conductive REACH/RoHS compliant finish that outperforms Cadmium. AP-93 exceeds Olive-Drab Cadmium plating (Class W) by meeting 1000 hours of dynamic salt spray, 500 mating cycles, and meets the millivolt drop shell-to-shell conductivity of nickel (Class F). AP-93 also meets a 392 °F (200° C) temperature rating, is compatible with other platings, and is available on all D38999-style Series III connectors.

AP-93 is intermateable with Cadmium, making it the perfect drop-in replacement for applications where Cadmium has been the preferred option. AP-93 is an excellent choice for harsh applications related to sea, air, weapons systems, and space systems, as it provides superior barrier protection and excellent lubricity for threaded applications.

Features & Benefits:

  • Available on all D38999 Series III style connectors on /20, /24 and /26 shell styles
  • Meets 1000 hour salt spray requirement
  • REACH/RoHS compliant
  • Intermateable with Cadmium -- excellent drop-in replacement for existing connectors.
  • 500 mating cycles per D38999
  • Meets 392° F (200° C) temperature rating
  • Excellent shell-to-shell conductivity
  • Available in other Amphenol product lines as a commercial product
AP-93 1000 Hour Alt-to-Cad Plating

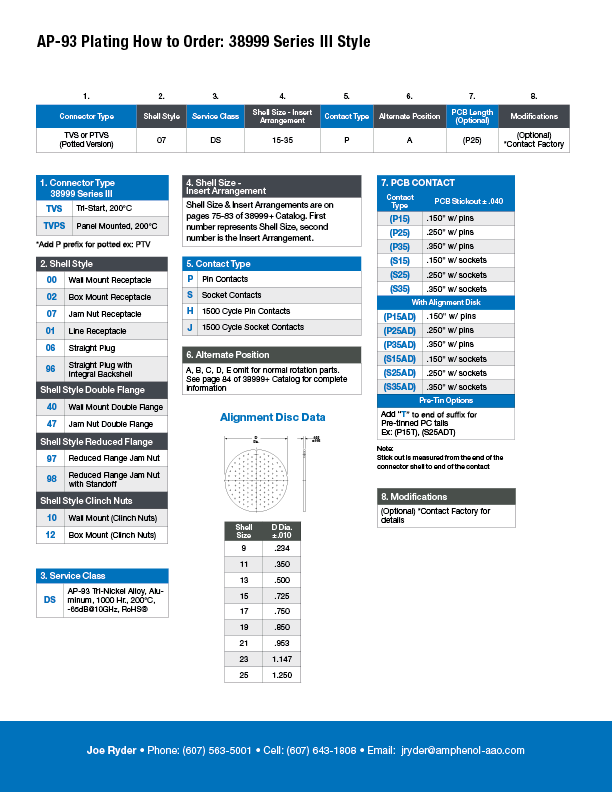

How to Order

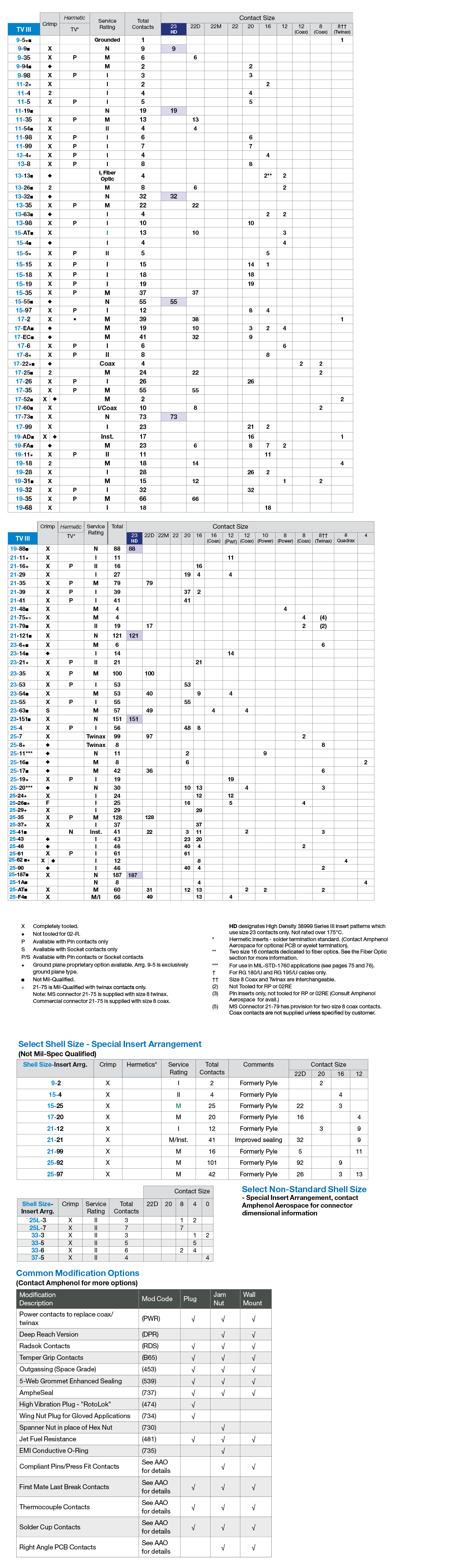

Insert Availability

Insert Arrangements

AP-93 Plating Data Sheet
The first D38999 RoHS compliant 1,000 hour salt spray resistant plating approved by the Defense Logistics Agency (DLA) for the Class AA Qualified Product List (QPL).
Summary of Cadmium's Compatibility with Dissimilar Metal Finishes
