Lightning Protection Products

Product Lightning Protection Products Product Lightning Protection Products

Contact:

Brennen Levis
Applications Engineer, Filters
+1 (607) 563-5599
Filterapps@amphenol-aao.com

Description:

In addition to proven filtering capabilities, Amphenol offers superior transient protection from numerous threats, including direct or indirect lightning strikes. Amphenol’s transient voltage protection connectors combine the traditional environmental protections of our standard connector products with transient voltage protection to meet all aircraft performance requirements. This technology can be a standalone component inside the connector or be coupled with additional filtering components to provide both filtering and transient protection capabilities in the same package. Amphenol transient protection connectors offer optimal weight and space saving capabilities while increasing reliability as no additional downstream circuits are required.

Features & Benefits:

  • Combine traditional environmental protections with transient voltage protection
  • Can be couple with additional filtering components
  • Weight and space saving
  • Nanosecond transient clamping response time
  • Compatible with:
    • MIL-DTL-5015
    • MIL-DTL-26482
    • MIL-DTL-26500
    • MIL-DTL-27599
    • MIL-DTL-38999
    • MIL-DTL-83723
  • Can be designed into plugs, receptables, or adapters
  • Available in size 16, 20, and 22 Contacts
Lightning Protection Facts & Info

Background
As the shift to more-electric and all-electric aircraft accelerates, so too does the need to dramatically reduce airframe weight. Many commercial and military aircraft already have significant portions of their bodies constructed of advanced carbon composite materials, but the proliferation of this technology is still an aircraft manufacturer’s single-greatest opportunity for further weight reduction. Though composites offer many performance advantages over traditional metal materials, the industry has yet to develop a composite material with shielding properties equal to that of their metal equivalents. Which means – now more than ever – the sensitive electronic equipment within aircraft are susceptible to transient voltage events. Transient voltage suppression (TVS) devices, which is a general classification of an array of devices that are designed to react to sudden overvoltage conditions, have become the popular choice for the protection of sensitive downstream components. At Amphenol Aerospace’s Lightning Lab, we have decades of experience in packaging these devices inside of our industry-leading aerospace interconnect, saving you cost, weight, and design time.

Overview
In addition to proven filtering capabilities, Amphenol offers superior transient protection from numerous threats, including direct or indirect lightning strikes. Amphenol’s transient voltage protection connectors combine the traditional environmental protections of our standard connector products with transient voltage protection to meet all aircraft performance requirements. This technology can be a standalone component inside the connector or be coupled with additional filtering components to provide both filtering and transient protection capabilities in the same package. Amphenol transient protection connectors offer optimal weight and space saving capabilities while increasing reliability as no additional downstream circuits are required.

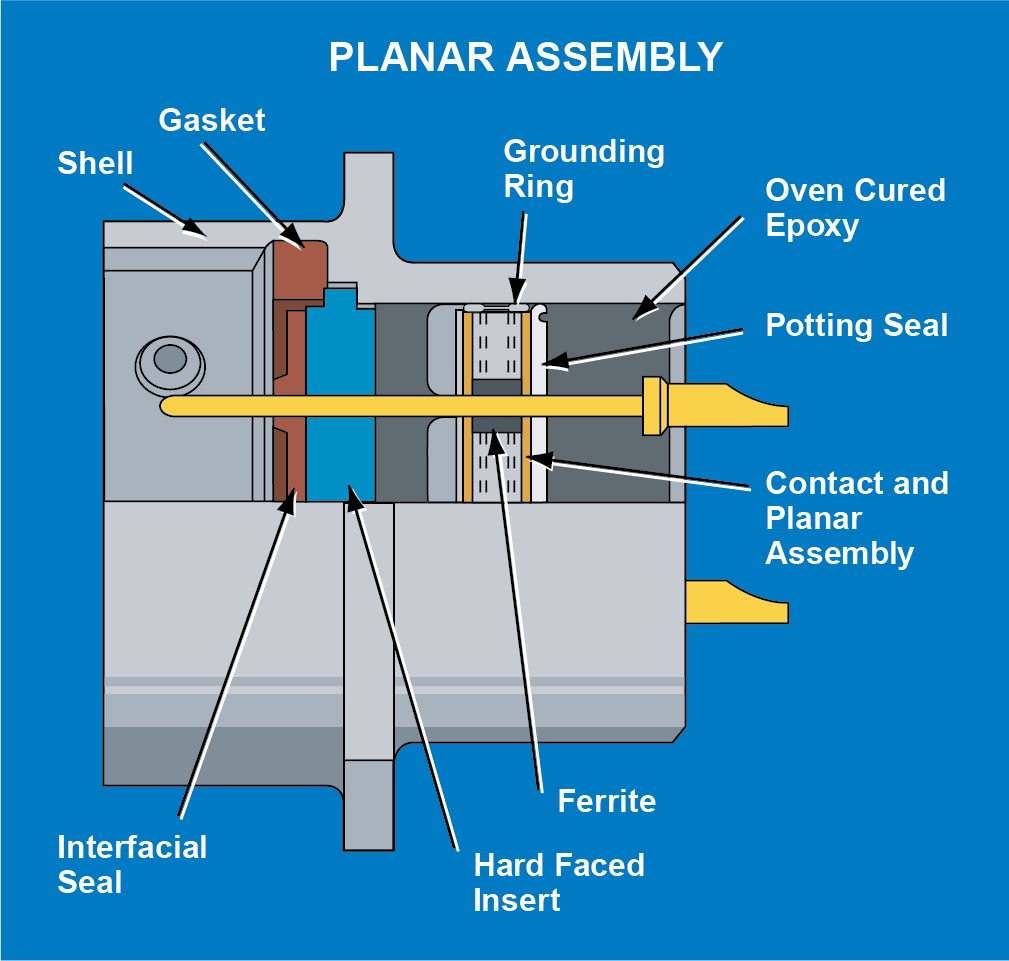

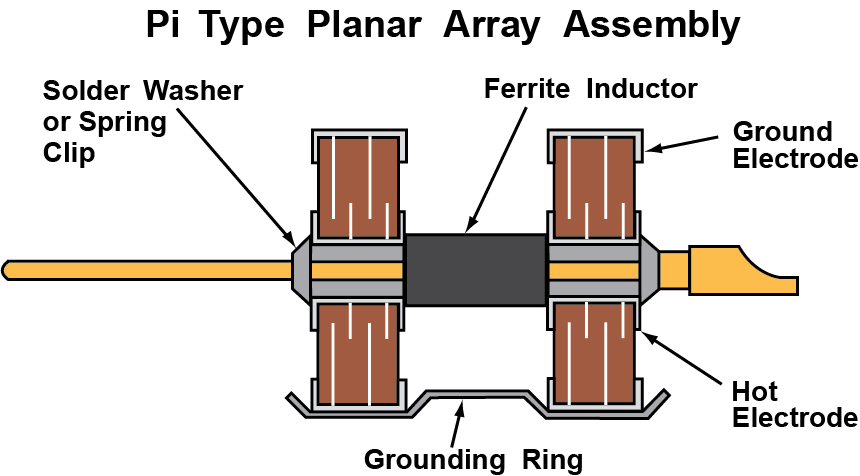

Planar Assembly Diagram                             Pi Type Planar Assembly Cutaway Diagram

Design and Construction
The Amphenol transient voltage protection connector utilizes the design and framework of numerous MILSpec connectors to preserve intermateability within the connector class while also maintaining many qualification requirements. Transient protection is achieved by utilizing passive components to clamp voltage spikes to protect sensitive downstream circuits. Amphenol offers two distinct component types to achieve this protection in the form of MOV (Metal Oxide Varisitor) planar and TVS (Transient Voltage Suppression) diodes. These components are strategically chosen to offer the optimal solution given the application requirements, and their advantages are explained below. Once the components are chosen, mechanical design considerations are taken into account to install these passive components into the connector shell while maintaining connector intermateability.

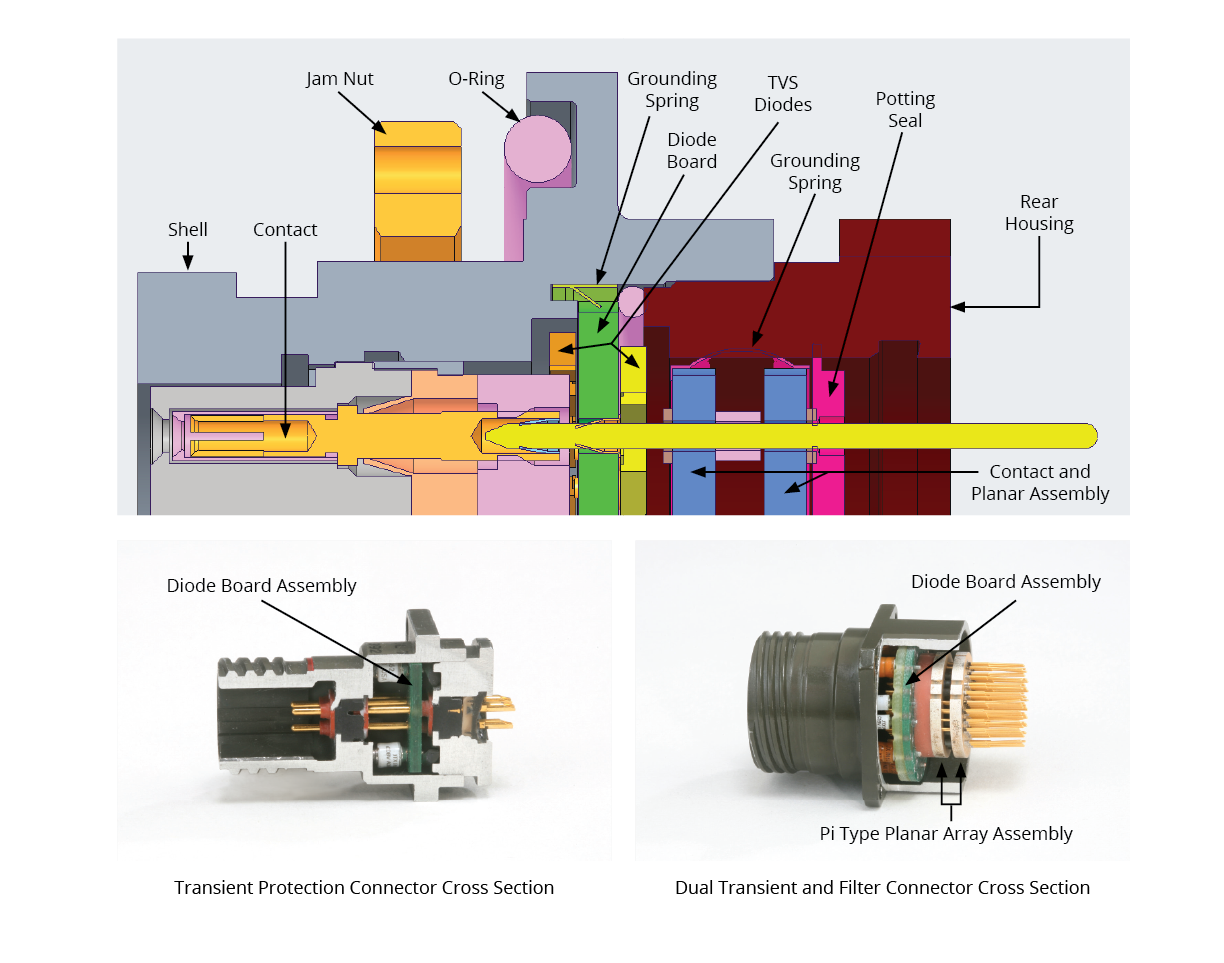

Labeled Cross Sections of Diodes and Planar Arrays

MOV Planar Vs. TVS Diode

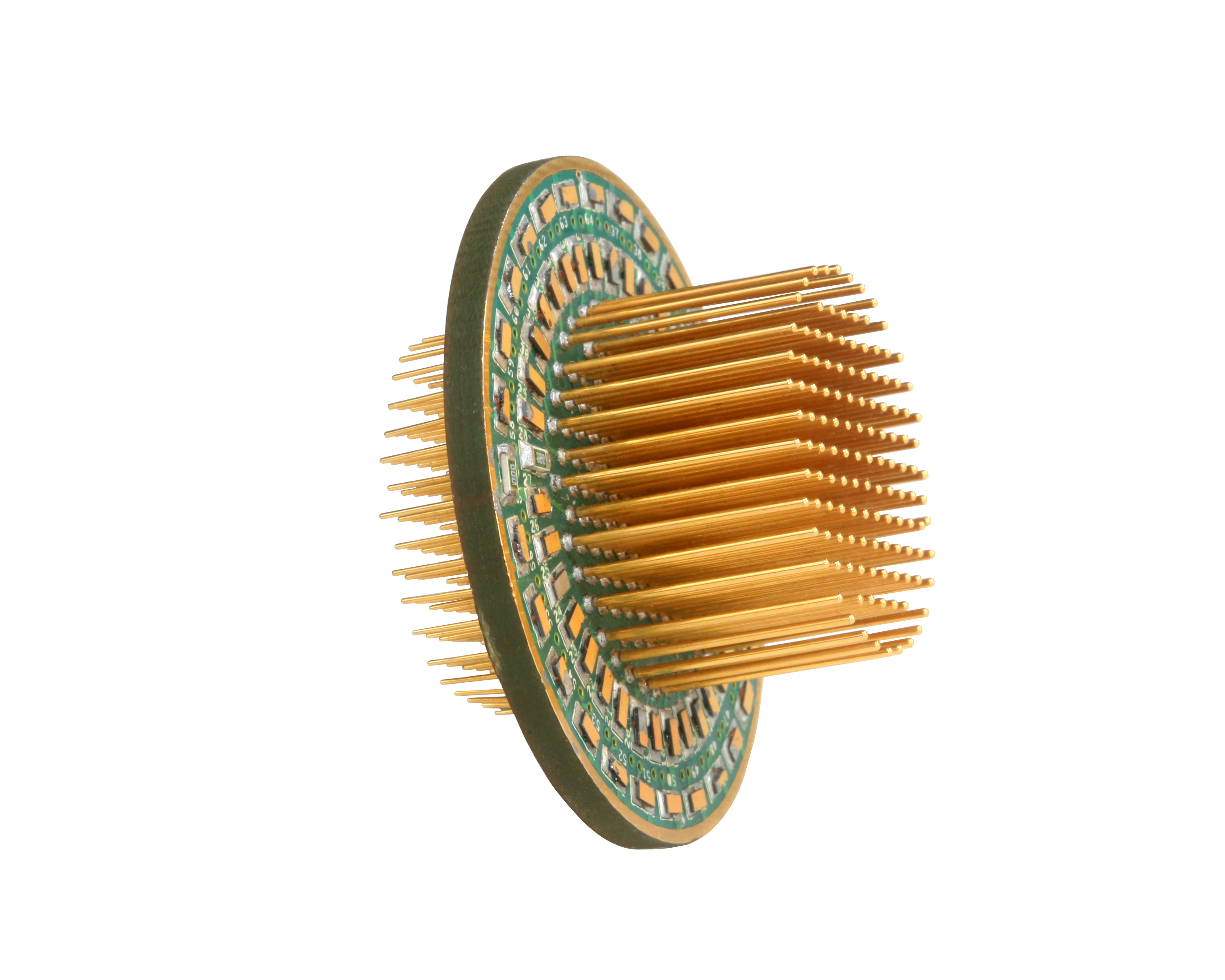

Amphenol Aerospace primarily utilizes either MOV planar technology or board mounted TVS diodes to accomplish transient suppression. Both devices are designed to fulfill similar electrical requirements. The MOV planar accomplishes this by installing a ceramic mass composed of metal oxide grains in between two metal electrode plates. Board mounted TVS diodes are comprised of standard semiconductor diodes mounted to a ceramic board.

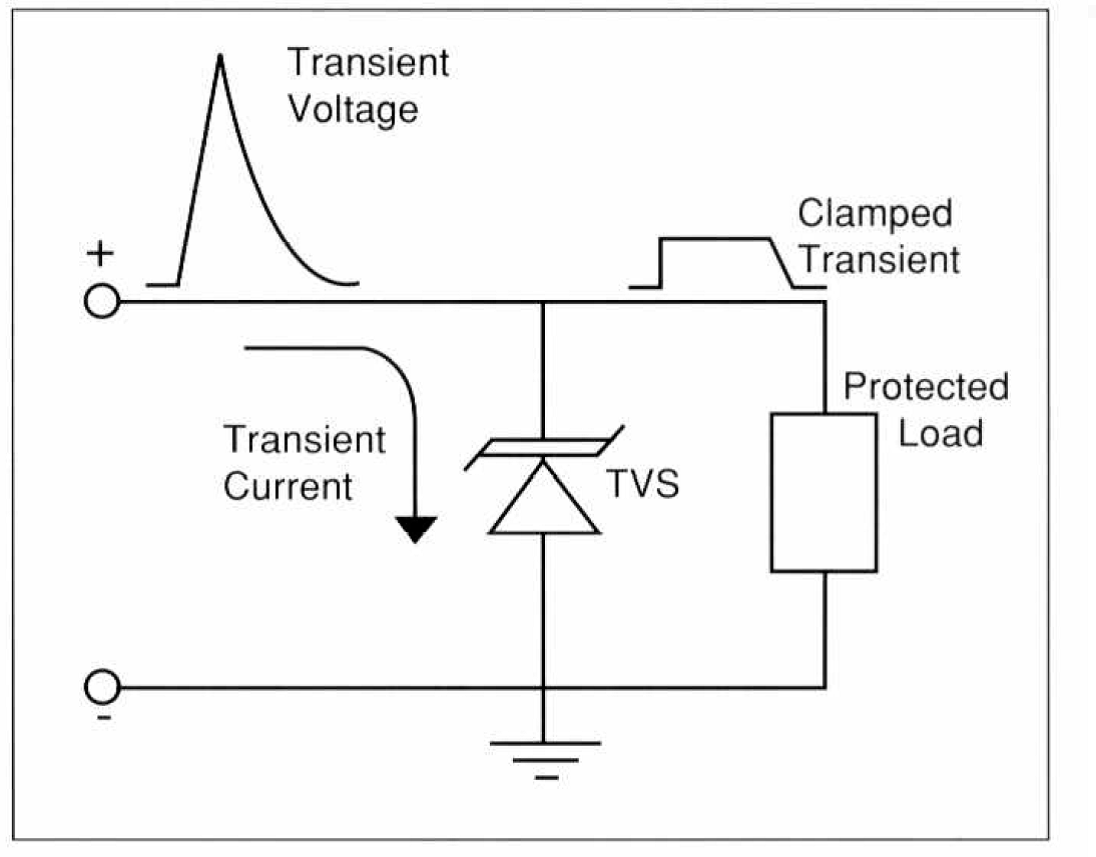

Transient Voltage circuit diagram

Both protection devices offer nanosecond transient clamping response time, ensuring reliable protection of components. A breakdown of the advantages and disadvantages of each suppression device can be seen below.

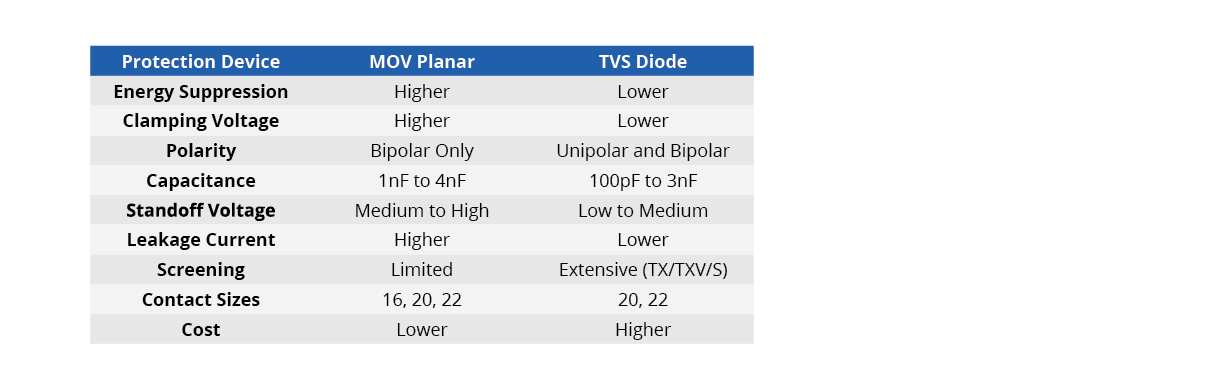

Protection Device MOV Planar TVS Diode
Energy Suppression Higher Lower
Clamping Voltage Higher Lower
Polarity Bipolar Only Unipolar and Bipolar
Capacitance 1nF to 4nF 100pF to 3nF
Standoff Voltage Medium to High Low to Medium
Leakage Current Higher Lower
Screening Limited Extensive (TX/TXV/S)
Contact Sizes 16, 20, 22 20, 22
Cost Lower Higher

Amphenol MOV Planar ImageAmphenol TVS Diode Schematic

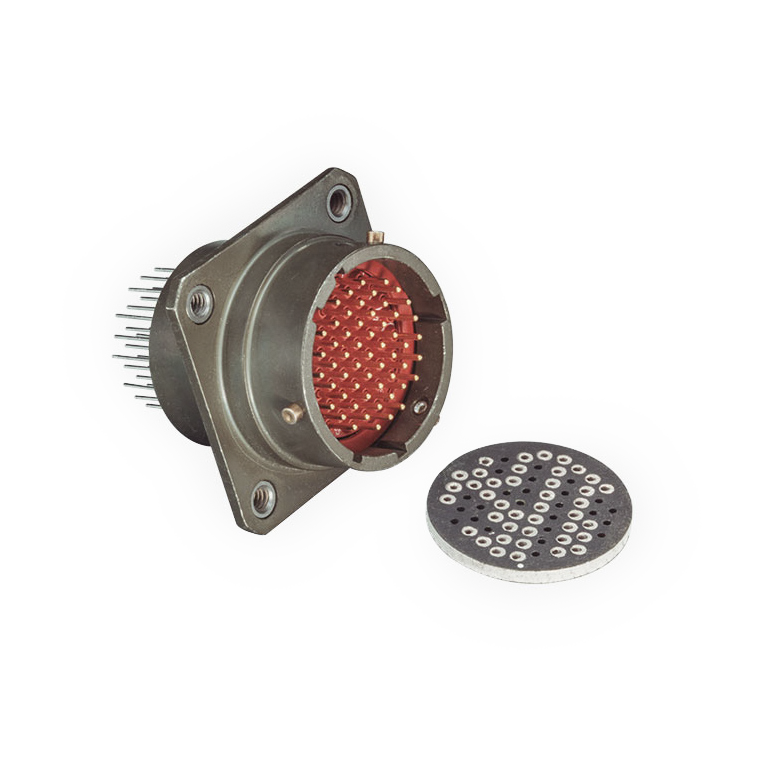

                   MOV Planar                                            TVS Diode Schematic



Compatibility
The Amphenol transient voltage protection connector are offered popularly in any style connector and can be made in accordance with the below MIL-Specs and more:
• MIL-DTL-5015
• MIL-DTL-26482
• MIL-DTL-26500
• MIL-DTL-27599
• MIL-DTL-38999
• MIL-DTL-83723

Protection devices can be designed into plugs, receptacles, or adapters. Adapters are a convenient and economical method of introducing transient and/or filtering protection into an installed system by offering a connector with a plug mating interface on one end and a receptacle interface on the other to mate with preexisting plug and receptacle infrastructure.

Qualifications and Testing
Amphenol Aerospace can meet the applicable transient protection profiles for lightning strikes as outlined in RTCA-DO-160G and MIL-STD-461G. After a quick consultation, Amphenol’s Lightning Lab will recommend the optimal transient protection solution given any requirement or threat environment. With industry-leading quality systems and testing requirements, Amphenol Aerospace ensures a compliant and reliable product, every time. All TVS diodes are screened to the applicable requirements of MIL-S-19500TX/TXV.

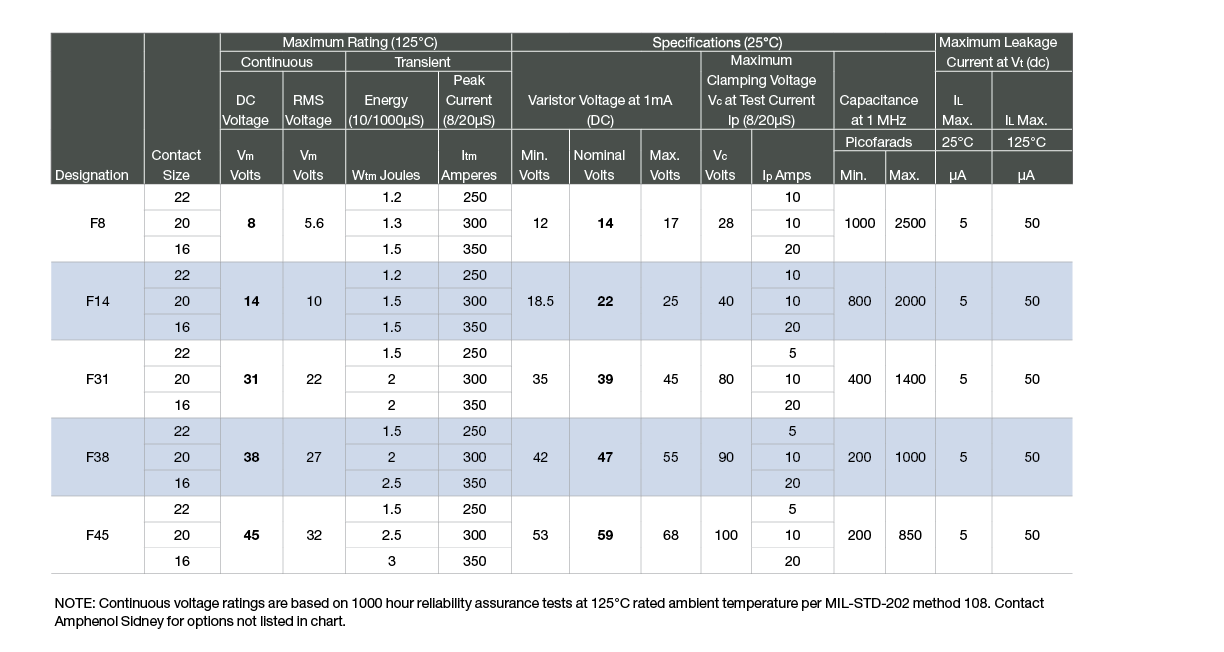

MOV Performance Characteristics

Designation Contact Size Maximum Rating (125°C) Specifications (25°C) Maximum Leakage Current at Vt (dc)
Continuous Transient Varistor Voltage at 1mA (DC) Maximum Clamping Voltage Vc at Test Current Ip (8/20μS) Capacitance at 1MHz IL Max. IL Max.
DC Voltage RMS Voltage Energy (10/1000μS) Peak Current (8/20μS) Picofarads 25°C 125°C
Vm Volts Vm Volts Wtm Joules Itm Amperes Min. Volts Nominal Volts Max. Volts Vc Volts Ip Amps Min. Max. μA μA
F8 22 8 5.6 1.2 250 12 14 17 28 10 1000 2500 5 50
20 1.3 300 10
16 1.5 350 20
F14 22 14 10 1.2 250 18.5 22 25 40 10 800 2000 5 50
20 1.5 300 10
16 1.5 350 20
F31 22 31 22 1.5 250 35 39 45 80 5 400 1400 5 50
20 2 300 10
16 2 350 20
F38 22 38 27 1.5 250 42 47 55 90 5 200 1000 5 50
20 2 300 10
16 2.5 350 20
F45 22 45 32 1.5 250 53 59 68 100 5 200 850 5 50
20 2.5 300 10
16 3 350 20

NOTE: Continuous voltage ratings are based on 1000 hour reliability assurance tests at 125°C rated ambient temperature per MIL-STD-202 method 108. Contact Amphenol Sidney for options not listed in chart.

MOV Performance Characteristics Chart

MOV Performance Characteristics

MOV vs TVS Comparison
