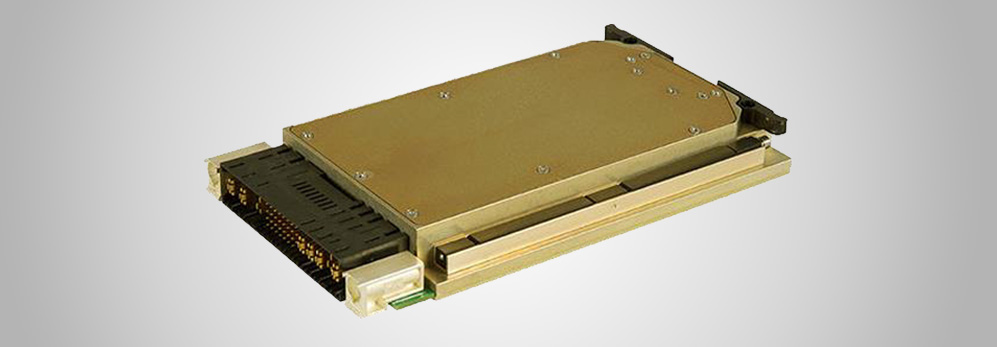

M4465 Series
Contact:
Description:
The M4465 steady state operation voltage is 18V to 48 V and will continuously work up to 50V Input line. When Configurable to support MIL-STD 704/1275 transients or surges, the unit will shut down when input voltage rises above 60V or under 16V for more than 2Sec and immediate shut down under 12V or above 100V Input. Power supply automatically recover when it’s Input goes back to normal steady state line.
Features & Benefits:
• VITA 62 compliant
• Wide input range
• Remote sense
• Fixed switching frequency (250khz)
• External synchronization capability
• Indefinite short circuit Protection
• Over-voltage shutdown with auto-recovery
• Reverse battery protection
• Over temperature shutdown with auto-recovery
• EMI filters included
• IPMI communication
